| Place of Origin: | Guangdong in China |
|---|
Specifications

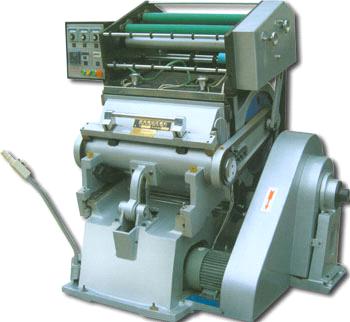

This Machine is a kind of special equipment used for thermo-printing and creasing various products,such as cardboard,leather and plastic etc.It is suitable for thermo-printing various paper products with electrochemical aluminum and also used as a creasing and cutting machine for mould cutting and creasing cardboard cases and boxes.Concave.Convex thermo-printing of various high-grade and fine printed products can also be conducted on this machine for obtaining stereoscopic exquisite and beautiful packing and decorating products.The machine is controlled by a chip microprocessor,with the foil-feeding rubber roller of electrochemical aluminum driven by the separately se length and leapfrog parameters to make the most effective using of electrochemical aluminum, the purpose of this model is to ensure that the system runs stably and rellably so that the machine can be maintained by anybody.
Main Technical Variables:
| Model | TYMQ750 | TYMQ930 | TYMQ1100 |
| Effective area of plane | 780x550mm | 960x700mm | 1130x820mm |
| Area of Big Gilding Plate | 750x520mm | 920x660mm | 1100x800mm |
| Area of Small Gilding Plate | 800x400mm | 850x550mm | |
| Total Electro thermal Power | 6kw | 9kw | 12kw |
| Range of Temperature Adjusting | 0-160 | 0-160 | 0-199 |
| Speed of Continuous Pressing | 25Storkes/min | 22Storkes/min | 22Storkes/min |
| Max.Length of Foil Passing | 1-510mm | 1-650mm | 1-790mm |
| Working Pressure | 150t | 170t | 220t |
| Leapfrog Frequency | 1-99storkes | 1-99storkes | 1-99storkes |
| Motor Power | 2.2KW6/6(series) | 2.2KW6/6(series) | 2.2KW6/6(series) |
| Overall Dimensions | 1500x1350x1700mm | 1500x1700x1720mm | 1900x2000x1900mm |
| Mett Weight | 2200kg | 3500kg | 5000kg |
