Cooling International Technology Co Ltd.
China Manufacturer with main products: Megapixel HD IP Camera, DVR, Network Camera, HD, Megapixel, Security, Safety, Monitor, Hybrid DVR |

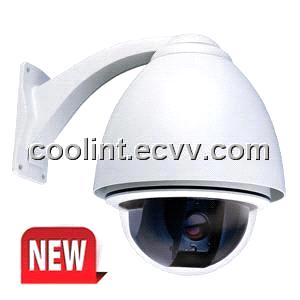

Megapixel HD IP camera (CY-5720HSD)
| Supply Ability: | 200 Set/Sets per Week |
|---|---|
| Shipping: | whinin 7 days |
| Payment Terms: | L/C, T/T(Bank Transfer), Western Union, PayPal |
Related products from verified members
| Place of Origin: | Shenzhen in China |
|---|
Specifications
CY-5720HSD Series Megapixel HD Box Camera, by adopting low illumination sensor, it has a video with better image quality under dark environment. Transmission via digital and no need to set up protocol or IP address are very convenient for project installation and testing.
Function and Advantage
Dual Stream: 1280×720 locally and CIF remotely
Automatic/Manual focusing
Data not losing when power off
4 patrols; 64 preset points for each patrol
Video image stable and without shaking when rotating in high speed
Three ways to control stream: fixed, changeable and compound
Playback brightness adjustable
Automatic reducing frames during night (adjustable)
Anti thunder and electrical surge
Automatic exposure, white balance and gain control
Firmware updatable
Free DDNS
Manufacturer supplier ensure on-time delivery and best price ratio
Technique parameters
| Model | CY-5720HSD-10 | CY-5720HSD-18 | |
| Camera | Image sensor | 1/3 inch CMOS Sensor, Pixel (Color) | |
| Min. illumination | 0.01Lux/F1.6(Wide) | ||
| Exposure mode | Automatic exposure, white balance and gain control. | ||
| S/N ratio | No less than 50dB | ||
| Video resolution | 1280*720(25fps)/432*240(25fps)PAL 1280*720(30fps)/432*240(30fps)NTSC | ||
| Day/Night mode | IR-cut with two switchable filters | ||
| Focus | Manual/Automatic | ||
| Lens | Focal length | ||
| Optical zooming | 10 times | 18 times | |
| Iris | Automatic | ||
| Iris value | F1.6(wide)/F 2.0(tele) | F1.6(wide)/F 2.8(tele) | |
| (wide)/(tele) | INFINITY(wide)/(tele) | ||
| Function | Pan angle | 0°-360° | |
| Pan speed | 0.3°-100°/s(control);100°/s(patrol) | ||
| Tilt angle | 0°-90° | ||
| Tilt speed | 0.5°-20°/s(control);20°/s(patrol) | ||
| Preset points | 256 points | ||
| Patrol | 4 patrols, each patrol with 64 points | ||
| Memory when power off | Data not losing when power off | ||
| Network | Communication interface | RJ45, / Self-adaptive Ethernet Interface | |
| Maximum Image size | 1280*720 | ||
| Video Frame rate | 1-25fps (PAL)/1-30fps (NTSC) | ||
| Video compression | H.264/MPEG-4 | ||
| Protocol | TCP/UDP/IP/HTTP/FTP/SMTP/DHCP/DNS/ARP/ICMP/POP3/NTP | ||
| Dual bit rate | support | ||
| Video compression rate | 500KB/S - 3M/S | ||
| Control protocol | IP control protocol | ||
| User authority | Managed by different levels | ||
| Others | 3D control keyboard | Support Pelco-P/Pelco-D protocol | |
| Input power | DC 12V | ||
| Back-end equipments | DVR cards/Hybrid DVR/PDVR/PC | ||
| Power consumption | Max. 20W | ||
| Protection level | IP66,TVS 3000V anti thunder, anti electronic surge | ||
| Size | Ф230*324 (mm) | ||
| Weight | |||
| Working temperature | -10 -+(indoor)/-20 - +(outdoor) | ||
| Storage temperature | -20 - + | ||
| Working humidity | 10 ~ 90% | ||
| Installment | Wall/Dome | ||
