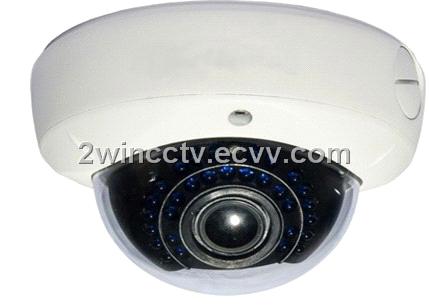

Varifocal Zoom Dome Camera (TW-CD321)

Supply Ability:	5,000 Piece/Pieces per Month
Shipping:	3 working days
Payment Terms:	T/T(Bank Transfer), Western Union, PayPal

Inquiry Now

Place of Origin:	Guangdong in China
Packaging Details:	OEM is welcomed

Specifications

Varifocal Zoom Dome camera TW-CD321

Horizontal Resolution:

1\3 SONY 420/550/600TVL optional

Detail Specification :

Imaging Sensor	1/3'' Sony 405/404AK CCD +Sony 3142 DSP	1/3'' Sony 639/638BK CCD + CP7 DSP	1/3'' Sony 673/672AK CCD +Sony Effio-E 4127 DSP
Horizontal resolution	420TVL	600TVL	650TVL
Effective Pixels	PAL:500(H)x582(V)	PAL:752(H)x582(V)	PAL: 960(H)×582(V)
	NTSC: 510(H)x492(V)	NTSC: 768(H)x494(V)	NTSC: 967(H)×494(V)
IP Rating	IP65
Signal System	PAL/ NTSC
Minimum Illumination	0 Lux When IR ON (0.5Lux When IR OFF)	0 Lux When IR ON (0.01Lux When IR OFF)
Syn. System	Internal Synchronization
Shutter speed	PAL:1/50～1/100000s; NTSC:1/60～1/100000s
Lens	Standard lens: 4-9mm manual VF lens; 4-9mm auto iris VF lens, 2.8-11mm manual/auto iris VF Lens optional
S/N Ratio	More than 48dB(AGC OFF)	More than 50dB(AGC OFF)
IR Led	30pcs ф5mm IR Leds
IR distance	25-30m
White Balance	Auto Tracking White Balance
Backlight Compensation	Auto BLC
Video Output	1.0Vp-p,75 Ω, BNC
Power Supply	DC12V, DC12V/AC24V optional
Operating Temperature	-20 °C ~ + 50 °C
Package	24PCs/CTN, 665031CM, 27.6KGs
