Shenzhen Bonseal New Material Co., Ltd.
China Manufacturer with main products: Heat Shrink Tubing, Medium Wall Tubing, Stress Control Tubing, Heavy Wall Tubing, Dual Wall Tubing |

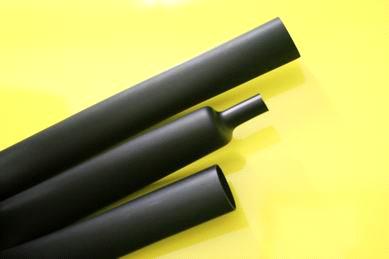

BFRA3 Heavy Wall Tubing
| Supply Ability: | 200 Ton per Month |
|---|---|
| Shipping: | 20~30days |
| Payment Terms: | L/C, T/T(Bank Transfer) |
Related products from verified members
| Place of Origin: | Guangdong in China |
|---|---|
| Packaging Details: | carton |
Specifications
Environment-friendly Flame-retardant Heavy Wall Tubing with Hot Melt Adhesive
Flame retardant
RoHS Compliant
Good Mechanical Performance
UV and Weather Resistance
Excellent sealing & electrical properties
Shrink Ratio: 3 : 1
Available sizes: from Φ9mm to Φ130mm
Operating Temperatures: -55 to 110 degrees centigrade
Min. Fully Recovery Temperature: 120 degrees centigrade
Min. Fully Recovery Temperature: 120 degrees centigrade
Standard colors: Black
SPECIFICATIONS
|
ITEM
|
Property
|
Test Method
|
Typical Data
|
|
Property of Jacket
|
|||
|
1
|
Tensile Strength
|
ASTM D-2671
|
≥13MPa
|
|
2
|
Ultimate Elongation
|
ASTM D-2671
|
≥400%
|
|
3
|
Longitudinal Shrinkage
|
UL 224
|
0 ~ -10%
|
|
4
|
Density
|
ASTM D-792
|
1.05g/cm3
|
|
5
|
Volume Resistance
|
ASTM D-2672
|
1013Ω. cm
|
|
6
|
Flammability
|
-
|
Self-extinguish in 60 sec.
|
|
7
|
Dielectric Strength
|
IEC 243
|
≥18KV/mm
|
|
Property of Adhesive
|
|||
|
1
|
Ring-ball Soft Point
|
ASTM E-28
|
85±5℃
|
|
2
|
Water Absorption
|
ISO 62
|
≤0.2%
|
|
3
|
Peel Strength(PE)
|
DIN 30672
|
4N/cm
|
DIMENSIONS
|
ITEM
|
SIZES
|
I.D
As supplied(mm) |
I.D
After recovery(mm) |
Wall Thickness
After recovery(mm) |
|
1
|
9/3
|
9
|
3
|
2.0
|
|
2
|
13/4
|
13
|
4
|
2.5
|
|
3
|
22/6
|
22
|
6
|
2.7
|
|
4
|
33/8
|
33
|
8
|
3.2
|
|
5
|
40/12
|
40
|
12
|
4.1
|
|
6
|
55/16
|
55
|
16
|
4.1
|
|
7
|
65/19
|
65
|
19
|
4.1
|
|
8
|
75/22
|
75
|
22
|
4.1
|
|
9
|
95/25
|
95
|
25
|
4.1
|
|
10
|
115/34
|
115
|
34
|
4.3
|
|
11
|
140/42
|
140
|
42
|
4.3
|
