Fujian Quanzhou Don Ang Electronics Co., Ltd.
China Manufacturer with main products: GSM Burglar Alarm Panel, GSM Home Burglar Alarm, Alarm Voice Dialer, Intruder Alarm |

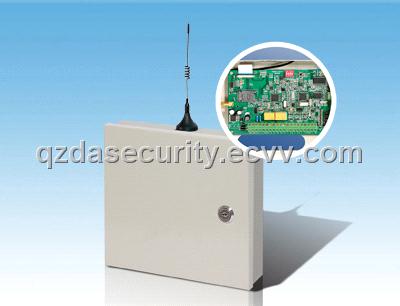

CDMA Wireless Communication Extension Module (DA-2300F)
| Payment Terms: | T/T(Bank Transfer), Western Union |
|---|
-
ECVV Safebuy Services
According to the requirements of buyers, ECVV.com will purchase the cost-effective Chinese products for you from the well-chosen suppliers database which was accumulated in the past 10 years.Learn More>>
-
Safebuy Service Guarantee
Provide financial security for multinational purchaser; Determine delivery time and acceptance product according to the purchasing requirements; Arrange Chinese export declarations and international logistics; Provide unified delivery of products from different suppliers.
Related products from verified members
| Packaging Details: | neutral packing |
|---|
Specifications
Function:
★DA-2300F general-type CDMA communication module, can access all information that alarm unit transmit to center monitoring station, through alarm unit telephone line port, to transmit them to center by CDMA network;
★N.O, N.C, and 12V voltage signal to trigger three expand zones;
★SMS remote relay control, site monitoring, voice or SMS alarm through GSM network;
★Be compatible with ADEMCO 4+2 and ADEMCO Contact ID center monitoring station protocol;
★Easy programming and flexible setting, parameters can be set by SMS or computer-use software serial port;
★Telephone line testing ability; can shift freely between telephone line communication and GSM/CDMA communication.
Specification:
★N.O, N.C, and 12V voltage signal to trigger three expand zones;
★SMS remote relay control, site monitoring, voice or SMS alarm through GSM network;
★Be compatible with ADEMCO 4+2 and ADEMCO Contact ID center monitoring station protocol;
★Easy programming and flexible setting, parameters can be set by SMS or computer-use software serial port;
★Telephone line testing ability; can shift freely between telephone line communication and GSM/CDMA communication.
Specification:
★Power Supply:
input: AC 220V or 110V, ±10%,50Hz
output : DC14V/500mA
★Static current: ＜100mA
★Operating current: ＜300mA
★Installation: hanging
★Voice record: 20s at the most, save from power down.
★GSM monitoring: Indicator show whether in network service.
★GSM frequency: E-GSM/GPRS 860-893MHz
★Standards : EN 50131-1, EN 50136-2-1, 2-3, 2-4
★Security rate : 2 (Lower than the moderate risk)
★Environment rank: Generally room Level II(-10 to 40℃)
★Electrical security: EN 60950
★Electromagnetic compatibility: EN 301489-1, EN 301489-7, EN 55022, EN 50130-4
★Radio properties : ETSI EN 301419-1, EN 301511
★Weight: about 1.65kg
★Size(L×W×H): 210×50×190mm
input: AC 220V or 110V, ±10%,50Hz
output : DC14V/500mA
★Static current: ＜100mA
★Operating current: ＜300mA
★Installation: hanging
★Voice record: 20s at the most, save from power down.
★GSM monitoring: Indicator show whether in network service.
★GSM frequency: E-GSM/GPRS 860-893MHz
★Standards : EN 50131-1, EN 50136-2-1, 2-3, 2-4
★Security rate : 2 (Lower than the moderate risk)
★Environment rank: Generally room Level II(-10 to 40℃)
★Electrical security: EN 60950
★Electromagnetic compatibility: EN 301489-1, EN 301489-7, EN 55022, EN 50130-4
★Radio properties : ETSI EN 301419-1, EN 301511
★Weight: about 1.65kg
★Size(L×W×H): 210×50×190mm
