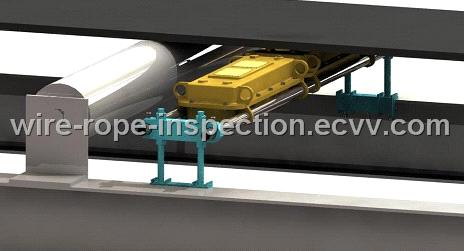

TCK On-line Automatic Inspection System for Steel Cord Conveyor Belt

FOB Price:	20,000.00 - 200,000.00 USD/Set
Supply Ability:	10,000 Set/Sets per Year
Shipping:	30 days after receiving payment
Payment Terms:	L/C, T/T(Bank Transfer)

In Stock

Inquiry Now

Related products from verified members

10 Pieces Heidelberg CD102 SM102 SM72 MO Machin...

Price:55.00 USD/Bag

Min. Order:1 Bag
Electronic Belt Scale

Price:

Min. Order:1 Set

Product Details

Place of Origin:	Henan in China
Packaging Details:	box

Specifications

1. Introduction of TCK On-line Automatic Inspection System for Steel Cord Conveyor Belt

Steel cord conveyor belt, as important transportation equipment, has been widely used in such industries as Mining, Ports, Steel Mills, and Power Plants. Safety and production will be severely affected if belt breakage and ripping accidents happen. Due to the lack of reliable monitoring and testing instruments, operation safety has always been the “blind spot” or “source of danger” in the use and management of conveyor belts. Therefore, it is an urgent need for users to have the means that is capable to detect the hidden causes of accidents and ensure the safe operation of steel cord conveyor belt.

TCK On-line Automatic Inspection System for Steel Cord Conveyor Belt has successfully solved the problems of conveyor belt safety by online automatic inspecting and monitoring, which is becoming a brand new safety management model for conveyor belt. The system can not only provide real-time monitoring on the safety status of the conveyor belt and detect hidden causes of accidents, but also reduce the costs of conveyor belt use and improve production efficiency.

TCK Steel Cord Conveyor Belt Online Automatic Inspection System employs TCK’s patented and proven weak magnetism inspection technology, network communication technology, computer hardware and software technology, and explosion-proof technology. The system adopts modular design, making it possible for multi-module system to be constructed easily according to the width of conveyor belt at a low cost. Also, this system is available in explosion proof and non-proof. With the capability of unattended real-time inspection, it is by far the most advanced intelligent and non-destructive inspection system for steel cord conveyor belts in the world.

2. Specifications of TCK Online Automatic Inspection System for Steel Cord Conveyor Belt

Type	Model	Inspection Range (mm)
TCK automatic inspection system for steel cord conveyor belt	TCK-PD600	Under 600
	TCK-PD1200	600 - 1200
	TCK-PD1800	1200 - 1800
	TCK-PD2400	1800 - 2400
	TCK-PD3000	2400 - 3000
	TCK-PD3600	3000 - 3600
	TCK-PD4200	3600 - 4200
	TCK-PD4800	4200 - 4800
□ Application environment: Temperature for computer: 0℃～50℃; for sensors -20℃～+55℃ □ Operation Humidity: ≤95%RH

3. Technical parameters

1) Sensor sensitivity: 5V/G and adjustable per actual working situation

2) Positioning accuracy: 1mm

3) Inspection speed: 0-8 m/sec

4) Conveyor belt speed inspection error: 1%

5) Splice displacement inspection accuracy (Non-elastic change): > 98%

6) Broken cord inspection accuracy: 99%

7) Corrosion inspection accuracy: > 90%

8) Vertical ripping of steel cord belt inspectoin accuracy: 100%

9) Signal transmission range: 10㎞

10) Sulfurized grade of conveyor belt splice: self-identification of belt splice order between one and four order.

11) Fault location of steel cord broken end

a) Longitudinal end: ±100㎜

b) Horizontal position error: ±50㎜

12) SMS remote reporting: can set up 3 grades reporting and multi-person reporting

13) High speed real-time data transmission: 10M-100M self-adaptive

14) Real-time image reconstruction and data compression technology

15) Remote debugging and remote maintenance function

16) Self-diagnosis function for system fault

17) Intelligent expert evaluation system and self-learning function

18) Embedded 32-bit industrial CPU and high speed data acquisition system

19) Working temperature: for computer 0℃～50℃and for sensors -20℃～+55℃

20) Operation humidity: ≤ 95%RH

21) Distance between the sensors and the steel cord conveyor belt: 70-110mm

22) Underground power supply: 127VAC, 50Hz; and maximum power: 5W

23) Groud power supply: 220VAC, 50Hz and maximum power: 300W
