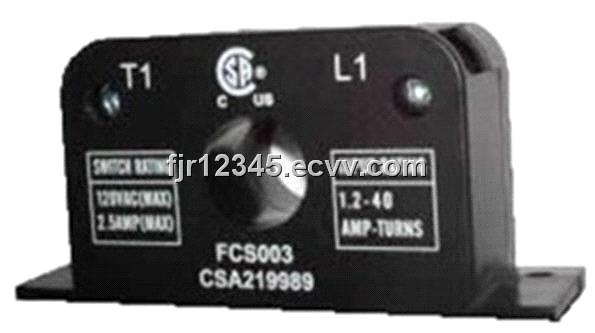

Current Sensing Switch (FCS003)
| Payment Terms: | T/T |
|---|
-
ECVV Safebuy Services
According to the requirements of buyers, ECVV.com will purchase the cost-effective Chinese products for you from the well-chosen suppliers database which was accumulated in the past 10 years.Learn More>>
-
Safebuy Service Guarantee
Provide financial security for multinational purchaser; Determine delivery time and acceptance product according to the purchasing requirements; Arrange Chinese export declarations and international logistics; Provide unified delivery of products from different suppliers.
Related products from verified members
-
Price:12,000.00-18,000.00 USD/SetMin. Order:1 Set -
Price:10.00-22.00 USD/PieceMin. Order:1,000 Pieces
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Guangdong in China |
Specifications
Current Switches
The Series are intended to monitor the operating status of fans, pumps, and motors. These self-powered switches can be hung or tied directly to cables or wires. For use on existing installation, split core models can be installed without disconnecting cables.
LED indicators provide a visual confirmation that the current is passing through the core. Both fixed and adjustable set points are available. The adjustable models easily adjust the set point with a potentiometer.
LED indicators provide a visual confirmation that the current is passing through the core. Both fixed and adjustable set points are available. The adjustable models easily adjust the set point with a potentiometer.
Specifications
Amperage Range: 0~200A AC
Maximum Switch Rating:
For fixed set point models: 0.3A@135V AC/DC
For adjustable set point models: 1A@240V AC
Output: Normally open.
Power Requirements: None, Self-powered.
Operating Temperature: -30~70 centigrade degrees
Operating Humidity: 0~95%(non-condensing).
Frequency:40~400Hz
Enclosure Rating: UL,94 V-O flammability rated, ABS plastic housing.
Approvals: UL & cUL CE & Rohs
LED Indicators
Green LED: indicates that current is passing through the core, but the set point has not been reached and the contacts are open.
Red LED: indicates that the set point has been reached and the contacts are now closed.
