Shenzhen Weitongda Electronics Co., Ltd.
China Manufacturer with main products: Electronic and Technology Products |
Related products from verified members
Specifications

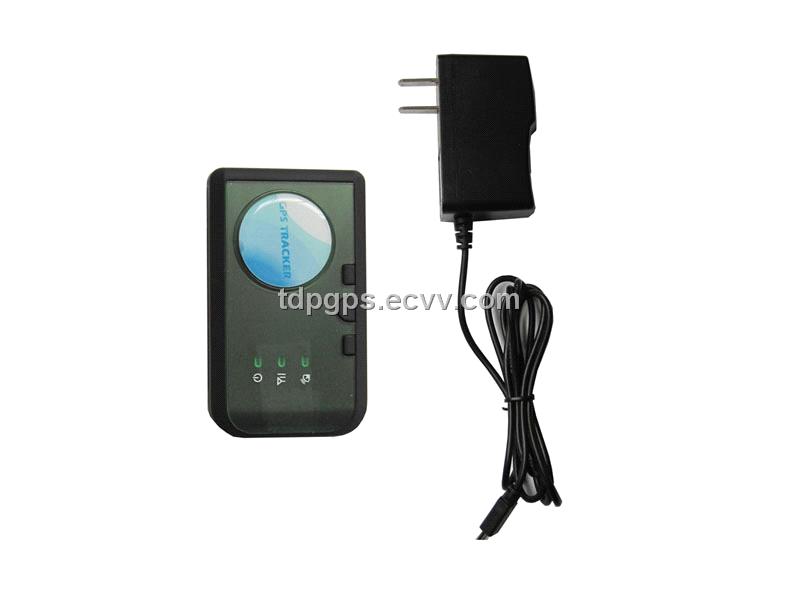

Personal GPS tracker
Overview
WTD-007 Series Vehicle Terminal apply military-industrial-level SiRF-Star Ⅲ module of America and Siemens communication module of Germany. The using frequency is 850/900/1800/1900. A lot of tests under different environments, ranging from the coldest city in the northeastern China to Haikou, the hottest city of China, show that the mainframe has good effect and conforms to the standard of each GPS technological parameters index .
Specifications
Product Dimensions: 18* 81* 48mm (a little bigger than the matchbox)
Battery Capacity: 1600mA (once positioning in 1 minute can last 24 hours)
Network: GSM/GPRS(it can last 48 hours without uploading)
Network Frequency: 850/1800/1900Mhz or 900/1800/1900Mhz
GPS Accuracy: between 1 meter to 10 meters
Working Temperature: -40 degrees to 85 degrees
Storage Temperature: - 20 degrees to 55 degrees
Humidity: 20% - 95%
Current Parameters: blue light fast flash represents no satellite, 3 seconds flash once represents received satellite.
Dormancy Current: 1mA (red light is GSM lights, fast flash represents no satellite, 3 seconds flash once represents received satellite)
Standby Current: 22mA (do not upload data in beedby state)
Speech Current: 158mA (current increases in calling and alarm)
Data Transfer Mode: 191-444mA (plug the charger is in blue light, the light turns into red when the USB plug in the host, and the light turns into green after charging represents charging completed)
It can be set for 30 seconds, 50 seconds, and 1 minute once to upload the location data on the platform (it is usually set for 58 seconds uploading once). It has many functions such as real-time online tracking the front direction of the vehicle and the car speed. Traffic record lines automatically saved for three months. Print Chinese record Reports of driving routes, the maximum speed and the minimum speed of the car, control the vehicle to power off or oil off. Over-speed alarm and cross-border alarm. Computer control the host, designated phone to monitor car voice.
Urgency:
When the crew in the vehicle is in danger, but he is not convenient to alarm, so just press the emergency button for 3 seconds. Then the host will call the three system management numbers circularly and sent alarm messages to the three numbers for urgency help.
In this case, the system positioning platform will also receive the warning message: Emergency help.
Low battery voltage alarm
The host will send low battery voltage alarm message to the binding number, platform can also receive, tell you that locating needs to recharge. The host can maintain about 1 hour after low power alarm.
Important Notice:
Don not stock battery in the host too long for preventing current reducing when the location is free. To reduce false alarm, we adopt touch instant device, press key A can call the first group of telephone twice in one second, press key A one second to 2 seconds can call the second group telephone for three consecutive times, press the key SOS 2 times a second start to alarm. You can press the key B to converse if someone calling terminal card number. If you don't want to use the key A to talk, you can press the key B hang up immediately.
Main functions:
Volume has matchbox size. No need wiring and put in your pocket or leather bag can real-time track the target. Single orientation, replay three months' travel track and print Chinese address Report for record.
Remote monitor the voice of the target. Built-in dual antenna and has strong anti-jamming capability.
Customer groups:
This product includes GPS and GPRS, GIS, personnel management terminal which is suitable for old people, children and disabled people, the blind, company salesman, officer, law enforcement units, police, policeman, city building patrols, police station guards, railway workers, power emergency repair personnel, postal express people, logistics companies receiving members, athletes, field construction work personnel, forestry checking people and guide in travel company, visitors, out-prison personnel. The functions used for dispatching management, relief, and collecting data to give management with swift and convenient enjoyment.
