Xunda Tech(HK)Co., Ltd.
China Manufacturer with main products: Smartphone, Tablet PC, Portable DVD, Portable TV Player, DVB, Android TV Box, Set Top Box, TV Box |

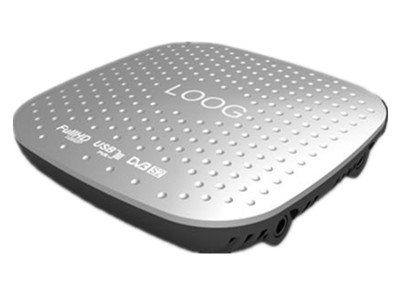

DVB-S2 FTA RECEIVER DSR7209G
| FOB Price: | 36.00 - 40.00 USD/Piece |
|---|---|
| Supply Ability: | 100,000 Piece/Pieces per Month |
| Shipping: | 25 days |
| Payment Terms: | L/C, T/T, Western Union |
-
ECVV Safebuy Services
According to the requirements of buyers, ECVV.com will purchase the cost-effective Chinese products for you from the well-chosen suppliers database which was accumulated in the past 10 years.Learn More>>
-
Safebuy Service Guarantee
Provide financial security for multinational purchaser; Determine delivery time and acceptance product according to the purchasing requirements; Arrange Chinese export declarations and international logistics; Provide unified delivery of products from different suppliers.
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Guangdong in China |
| Packaging Details: | giftbox |
Quick Details
- High Definition: Yes
- Type: Digital
- FTA(Free To Air): Yes
- Model Number: DSR7209G
- Brand Name: XD
- DVB: DVBS2
- DVB-S: DVB-S2 RECEIVER
- DVB-S2 SET TOP BOX: SET TOP BOX
- SATELLITE RECEIVER: DVB-T2
- DVB-C: ISDB-T
- ATSC-T: TV BOX
- IPTV BOX: ANDROID OTT BOX
- ANDROID TV BOX: ANDROID DVB
Specifications
Fully DVB-S/S2 compliant Support DVB Subtitle and Teletext Subtitle
JPG/MP3/AVI Supported Timeshift and PVR Manger
8 Favorite channel goups Instant record/Timer record and EPG record
7 days Electronic Program Guide (EPG) Parental Lock
Channel Search automatic and manual Channel and Program editor
Teletext output with both VBI and OSD OTA (optional)
LED display TKGS Supported"
Product Speficition
Tunner Tuner DVB-S2
Demodulation QPSK, 8PSK,16APSK,32APSK
Input Frequency: 950～2150MHz
Input level: -80～-20 dBm
Input impedance 75 Ω
Video Video decorder ISO/IEC 13818-2, MPEG-2 MP@ML, MPEG-4 AVC (MP L4.1)
Video output "CVBS(Video format @576i )
HDMI 1.3 (Video Format default @ Auto)
Support HDCP"
Video resolution 480P/576P,480i/576i/720p/1080p SD/HD compatible
Video Ratio 4:3 /16:9
Audio Standard ISO/IEC 13818-3
Decoding MPEG-1 Layer I and II, MPEG-2, MPEG-4 AAC
Output mode PCM, AC3
Sampling frequency 32, 44.1, 48KHz
Audio Mode Mono /Stereo /Left / Right
Processor CPU GX6605 Single chip SOC
Processor speed 600MHz
Flash Memory 4MB
DDR2 64MB
Interface HDMI High-Definition Multimedia Interface V1.3
USB USB 2.0 Port for Multimedia Player, PVR and Software Upgrade/Backup
CVBS Used to connect any external any external video and audio.
IR Extra Micro usb IR cable with LED
RS232 Serial Port for Software Upgrade
Power DC input Range 12V / 1A
Power Consumption
"physics
Speficition" Dimension(WxDxH) 85*85*20mm
Carton box size 400*400*325mm
Gift box size 188*124*57mm 30pcs/CTN
Weight
Operationg Temp.
Storage Temp.
Accessories RCU/USER MANUAL/IR Cable/Power adapter
JPG/MP3/AVI Supported Timeshift and PVR Manger
8 Favorite channel goups Instant record/Timer record and EPG record
7 days Electronic Program Guide (EPG) Parental Lock
Channel Search automatic and manual Channel and Program editor
Teletext output with both VBI and OSD OTA (optional)
LED display TKGS Supported"
Product Speficition
Tunner Tuner DVB-S2
Demodulation QPSK, 8PSK,16APSK,32APSK
Input Frequency: 950～2150MHz
Input level: -80～-20 dBm
Input impedance 75 Ω
Video Video decorder ISO/IEC 13818-2, MPEG-2 MP@ML, MPEG-4 AVC (MP L4.1)
Video output "CVBS(Video format @576i )
HDMI 1.3 (Video Format default @ Auto)
Support HDCP"
Video resolution 480P/576P,480i/576i/720p/1080p SD/HD compatible
Video Ratio 4:3 /16:9
Audio Standard ISO/IEC 13818-3
Decoding MPEG-1 Layer I and II, MPEG-2, MPEG-4 AAC
Output mode PCM, AC3
Sampling frequency 32, 44.1, 48KHz
Audio Mode Mono /Stereo /Left / Right
Processor CPU GX6605 Single chip SOC
Processor speed 600MHz
Flash Memory 4MB
DDR2 64MB
Interface HDMI High-Definition Multimedia Interface V1.3
USB USB 2.0 Port for Multimedia Player, PVR and Software Upgrade/Backup
CVBS Used to connect any external any external video and audio.
IR Extra Micro usb IR cable with LED
RS232 Serial Port for Software Upgrade
Power DC input Range 12V / 1A
Power Consumption
"physics
Speficition" Dimension(WxDxH) 85*85*20mm
Carton box size 400*400*325mm
Gift box size 188*124*57mm 30pcs/CTN
Weight
Operationg Temp.
Storage Temp.
Accessories RCU/USER MANUAL/IR Cable/Power adapter
