Shanghai Hongjin Ultrasonic Electronic Equipment Factory
China Manufacturer with main products: Ultrasonic Plastic Welding Macine, Steel Models the Earthwork Grill Production Line, Grill Automatic Geogrid, Geosynthetics, Reinforcement,... |
Related products from verified members
| Place of Origin: | Shanghai in China |
|---|
Specifications

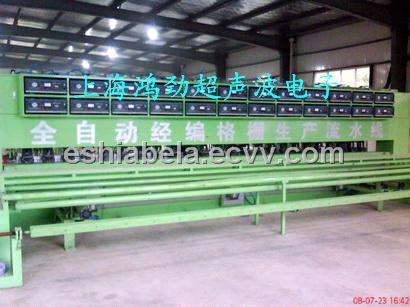

My company manufacturing grille equipment, is by multiple ultrasonic plastic welding unit together using imported PLC control has the following advanced features:
1, touch screen display and parameter setting, the original import piezoelectric transducers, output strong stability.
2, color display touch screen control panel.
Three, all Chinese menu, with a multinational language you set, easy operation.
4, mould level adjustable design, moulding-adjustment fast and convenient.
5, new power amplifier circuit, power stronger, more durable, transducer
6, frequency automatic tracking, various parameters Settings. A high degree of automation, in the domestic like product production in a leading position.
Grille line specification table
Grille line specification table
| Type | HJM-12-3 | HJM-16-4 | HJM-24-6 | HJM-32-8 |
| Position number of welding joint | 12 unit | 16 unit | 24 unit | 32 unit |
| Frequency | 31.2KW | 41.6KW | 62.4KW | 83.2KW |
| Outputpower | 15.6KW | 20.8KW | 31.2KW | 41.6KW |
| Size | 4.5*1.76*2.46 | 5.5*1.76*2.46 | 7.5*1.76*2.46 | 9.5*1.76*2.46 |
| Equipment weight | 3.5TONS | 4.8TONGS | 5.7TONS | 5.7TONS |
| Rated input voltage | AC380V | N50-60HZ | ||
| Rated input pressure | 0.8~0.1MPa | |||
| Air pressure vessel | ≥2.5~3.0/min | |||
| Air flow | 1.5~2.0M3 | 1.5~2.0M3 | ||
| Spacing between transverse welding points | 50mm-80mm-125mm-150mm-200mm-300mm | |||
| Spacing between longitudinal welding points | 50mm-150mm | |||
| Width of whole machine welded geogid | 3m | 4m | 6m | 8m |
| Daily yield of 24 hours | 3500SQM | 5500SQM | 7500SQM | 9500SQM |
