CNC Plasma Cutting Machine

Specifications

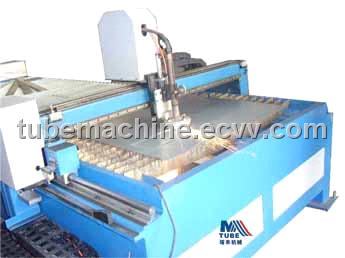

cnc plasma cutting machine

To meet market's need, We use Japan Panasonic &America Hypertherm Powermax to develop the Machine series. The machine are of six types. All machines consist of a main operating system and a specific software system. The control system uses a industrial computer. The machine is with a cutting software . The specific duct software  is from  Other country. It's specification can be seen below

Model	Cutting table	thickness	Cutting speed	weight	Dimensions(LxWxH)
ATM-3100	1300X 3100mm	0.5-10mm	0-20m/m	1850Kg	4650X1850X1520mm
ATM-4100	1300X4100mm	0.5-10mm	0-20m/m	2300Kg	5650X1850X1520mm
ATM-5100	1300X5100mm	0.5-10mm	0-20m/m	2700Kg	6650X1850X1520mm
ATM-3200	1600 X3100mm	0.5-10mm	0-20m/m	2000Kg	4650X2100X1520mm
ATM-4200	1600 X4100mm	0.5-10mm	0-20m/m	2450Kg	5650X2100X1520mm
ATM-5200	1600 X5100mm	0.5-10mm	0-20m/m	3000Kg	6650X2100X1520mm

The frame is of a steel welded construction, with a vibration treated roil to reduce internal stress, thus the frame is of good quality. X axis adopts high precision line cycle guide, Y axis adopts high precision line guide which reduces moving resistance. X and Y axis have been installed with high precision equipment, in order to guarantee two guide line tolerance of X axis less than ±0.05mm and vertical tolerance of X and Y axis less than ±0.05mm. The industrial operation system works in WINDOWS XP either in English or Chinese, which can be changed easily. The maximum work-speed of X axis and Y axis is 8 m/min. The industrial computer uses standard CNC language and can be programmed. The software is from a famous English company.
