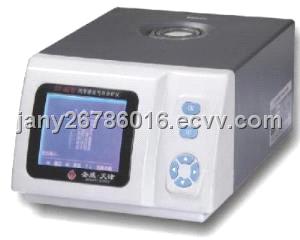

SV-4Q,SV-5Q,SV-2Q,SV-YQ,SV-2LS,SV-5Y,SV-D1T,SVQD-100C

Inquiry Now

Specifications

Introduction:

[Main technical parameters]
Measuring range
CO: 0～10.0 10-2(%) CO2: 0～20.0 10-2(%)
HC: 0～10000 10-6(ppm) O2: 0～25.0 10-2(%)
Oil temperature: 18℃～150℃
Speed: 100～20000rpm

Repeatability error
≤±2%

Zero drift
CO: ±0.06 10-2(%)/4h CO2: ±0.5 10-2(%)/4h
HC: ±30 10-6(ppm)/4h
O2: ±0.5 10-2(%)/4h NO: ±30 10-6(ppm)/4h

Span drift
No more than indication error allowable value (4 hours)

Indication error
CO: ±5%(Relative error, 0～10%)
CO2: ±5%(Relative error, 0～20%)
HC: ±5%(Relative error, 0～4000ppm)±10%(Relative error, 4001～10000ppm)
O2: ±5%(Relative error, 0～25%)
NO: ±5%(Relative error, 0～5000ppm)

Environmental conditions
oil temperature: ± 2 ℃ (relative error)
Speed: ± 1.0% (relative error)
Temperature: 0 ℃ ~ 40 ℃
Humidity: ≤ 80%
Atmospheric pressure: 60 ~ 105KPa
Power: AC 220V ± 10%; 50Hz ± 1Hz

Preheating time
10min

Weight
15KG

Volume
610 * 500 * 330mm

Simpling Exhaust
direct sampling, the length of the sampling tube is 5m, the length of the sampling probe is 900mm
Oil temperature: temperature measurement inserts into the oil gauge hole of the engine, insert length is same with the oil gauge, blocked with rubber plug to prevent oil smoke
Wire length: 5m;
Speed: fix the folder of tachometer on the high-voltage soft-line the of gasoline engine to measure the speed.

Display Mode
High-brightness LED display Large LCD display

Optional configuration
temperature, speed configuration

Main functions
Printer built in(temperature, speed configuration) , Communication with the computer network, 30 minutes automatically prompte to zero. Idling and dual idling two measurement methods, built-in clock module to display time, number plates can be stored 500 sets of measurements data, natural gas, liquefied petroleum gas and gasoline these three fuels to choose.
