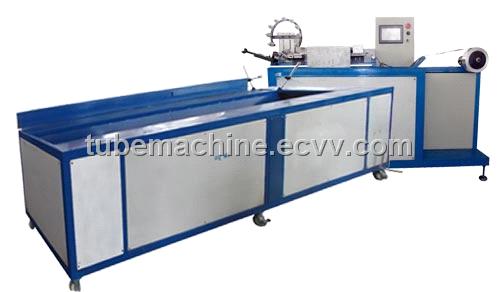

Aluminum Flexible Pipe Making Machine (ATM-300F)
| Supply Ability: | 10 Set/Sets per Year |
|---|---|
| Shipping: | 25 days |
| Payment Terms: | T/T |
| Place of Origin: | Shanghai in China |
|---|---|
| Packaging Details: | 1860*1150*1330mm and 5000*700*1000mm |
Specifications
aluminum flexible pipe making machine ATM-300F
ATM-300F Technical Terms:(7-corrugation ridge or 9-corrugation ridge)
| Forming diameter | 80--350mm |
| Pipe length | 500-6000mm(no limit,it can make any length) |
| Thickness | 0.050—0.15mm(aluminum), 0.035—0.10mm(stainless steel) |
| Strip width | 60mm |
| Speed | 1--70m/min(it can be adjusted) |
| System control | with LCD screen,transducer and PLC control,Automatic cut the pipe to length, And then Automatic compress the pipe to length. |
| Main power | 1.5KW, 220volt, single phase, 50 Hz |
| Weight | 1000kg |
| Overall size | 1860×1150×1330mm and 5000×700×1000mm |
| for material | aluminum foil, copper foil, stainless steel , galvanization steel. |
Main Features:
1.Produced by full-automatic.
2.Special moulds for various tube diameters,very easy to change and adjust.
3.Automatic cut to length,any length can be cut according to customer's requirement.
4.High speed synch flying cutting system.
Our company:
Our main products:spiral tube forming machine,flexible duct forming machine,auto roof forming machine,riveting machine,Pittsburgh seam lock machine.Hydraulic section steel bending machine,metal sheet flange forming machine,TDF hydraulic folder,auto cutting to length line,pipe bending machine,FN seam welder,notching and shearing machine.
Our main products:spiral tube forming machine,flexible duct forming machine,auto roof forming machine,riveting machine,Pittsburgh seam lock machine.Hydraulic section steel bending machine,metal sheet flange forming machine,TDF hydraulic folder,auto cutting to length line,pipe bending machine,FN seam welder,notching and shearing machine.
Our certificate:
1.CE
2.ISO901:2000
1.CE
2.ISO901:2000
Please contant us at any time available for you,if you want for more details.
