Jiaxing Leinuoer Electrics Co., Ltd.
China Manufacturer with main products: Nylon Hose, Plastic Hose, Metal Hose Series, Cable Connector |

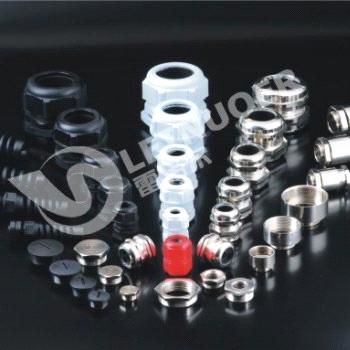

Waterproof Union for Metal Cables
| FOB Price: | 3.63 - 163.90 RMB/china port |
|---|---|
| Payment Terms: | L/C |
-
ECVV Safebuy Services
According to the requirements of buyers, ECVV.com will purchase the cost-effective Chinese products for you from the well-chosen suppliers database which was accumulated in the past 10 years.Learn More>>
-
Safebuy Service Guarantee
Provide financial security for multinational purchaser; Determine delivery time and acceptance product according to the purchasing requirements; Arrange Chinese export declarations and international logistics; Provide unified delivery of products from different suppliers.
Related products from verified members
| Place of Origin: | Zhejiang in China |
|---|
Specifications
Waterproof union for metal cables
Product code: LNE-M-EX
Product material: Location A, C and F are made of brass plated with nickel; B and E are made of chemigum and D is made of white polyamide.
Specification of thread: Metric, PG and G
Working temperature: Static: -40~110, instantaneously can be 120; Dynamic: -20~80, instantaneously can be 100;
Color: Location A, C and F are yellow, B and E are black, D is white.
Protection classification: Within the specified clamp range, use O-shaped sealing ring and screw tight the pressing fastener, waterproofing grade reaching Ip68.
Property: the special designs for clamping jaw and sealants fitted with the pressing fastener can save both time and energy, promising a wide scope for cable clamping and extremely great stretching resistance. It is water resistant, dust resistant and inactive with salts, acids, alkalis, oils and greases as well as general dissolvent.
How to use: LNE-M-EX metal waterproof cable joints are the fittings for cables. The joints can lock the cables tight. The other end of the joint can be either connected with the housing of equipments or connected with electric equipment with inner threaded access hole as per the thread selected.
|
Item No.
|
Metric thread
|
Range of bayonet
|
AG outer diameter
|
GL
(mm) |
H1+H2
(mm) |
Packaging unit: Units/pack
|
|
LNE-M-EX-M12
|
M12*1.5
|
3-6
|
12
|
6
|
19
|
100
|
|
LNE-M-EX-M14
|
M14*1.5
|
3-6
|
14
|
6
|
19
|
100
|
|
LNE-M-EX-M16
|
M16*1.5
|
4-8
|
16
|
7
|
20
|
100
|
|
LNE-M-EX-M18
|
M18*1.5
|
6-10
|
18
|
8
|
22
|
50
|
|
LNE-M-EX-M20
|
M20*1.5
|
6-12
|
20
|
8
|
23
|
50
|
|
LNE-M-EX-M22
|
M22*1.5
|
10-14
|
22
|
9
|
23
|
50
|
|
LNE-M-EX-M24
|
M24*1.5
|
10-14
|
24
|
10
|
23
|
50
|
|
LNE-M-EX-M27
|
M27*2.0
|
13-18
|
27
|
11
|
28
|
20
|
|
LNE-M-EX-M30
|
M30*2.0
|
13-18
|
30
|
11
|
28
|
20
|
|
LNE-M-EX-M33
|
M33*2.0
|
16-21
|
33
|
11
|
32
|
10
|
|
LNE-M-EX-M36
|
M36*2.0
|
18-25
|
36
|
11
|
32
|
10
|
|
LNE-M-EX-M42
|
M42*2.0
|
22-28
|
42
|
12
|
36
|
10
|
|
LNE-M-EX-M48
|
M48*2.0
|
25-32
|
48
|
13
|
38
|
10
|
|
LNE-M-EX-M54
|
M54*2.0
|
32-38
|
54
|
14
|
38
|
10
|
|
LNE-M-EX-M60
|
M60*2.0
|
37-44
|
60
|
14
|
38
|
10
|
|
LNE-M-EX-M64
|
M64*2.0
|
37-44
|
64
|
14
|
38
|
10
|
|
Item No.
|
PG thread
|
Range of bayonet
|
AG outer diameter
|
GL
(mm) |
H1+H2
(mm) |
Packaging unit: Units/pack
|
|
LNE-M-EX-PG7
|
PG7
|
3-6
|
12.5
|
6
|
19
|
100
|
|
LNE-M-EX-PG9
|
PG9
|
4-8
|
15.2
|
7
|
20
|
100
|
|
LNE-M-EX-PG11
|
PG11
|
5-10
|
18.6
|
8
|
22
|
50
|
|
LNE-M-EX-PG13.5
|
PG13.5
|
6-12
|
20.4
|
8
|
23
|
50
|
|
LNE-M-EX-Pg16
|
PG16
|
10-14
|
22.5
|
9
|
23
|
50
|
|
LNE-M-EX-PG21
|
PG21
|
13-18
|
28.3
|
11
|
28
|
20
|
|
LNE-M-EX-PG29
|
PG29
|
18-25
|
37.0
|
11
|
32
|
10
|
|
LNE-M-EX-PG36
|
PG36
|
25-32
|
47.0
|
13
|
38
|
10
|
|
LNE-M-EX-PG42
|
PG42
|
32-38
|
54.0
|
14
|
38
|
10
|
|
LNE-M-EX-Pg48
|
PG48
|
37-44
|
59.3
|
14
|
38
|
10
|
