PE Film Shrink Wrapping Machine

FOB Price:	2,000.00 - 10,000.00 USD/Set
Supply Ability:	10 Set/Sets per Month
Shipping:	20 days
Payment Terms:	L/C, T/T(Bank Transfer)

In Stock

Inquiry Now

Related products from verified members

PVC Profiles Wrapping Machine (MBF-L300SD)

Price:

Min. Order:
Multifunctional Cold&hot Glue Sheeting Mach...

Price:5,000.00-6,000.00 USD/Set

Min. Order:1 Set

Product Details

Place of Origin:	Jiangsu in China
Packaging Details:	wooden case

Specifications

1. PE Film Shrink Wrapping Machine
2. Wapage: PE
3. Capacity: 720bags/h
4. advanced technology

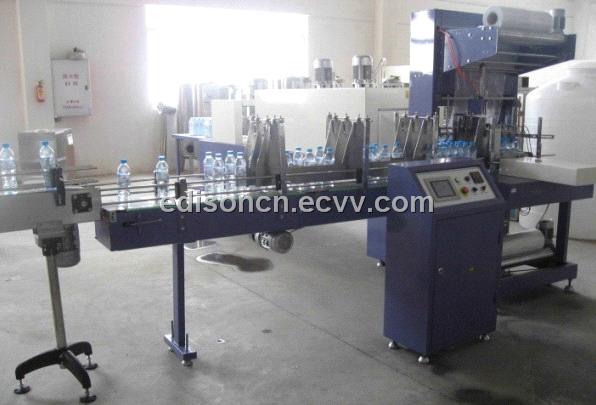

PE Film Shrink Wrapping Machine

Product Description:
This machine is the last one of the beverage filling line to pack sleeve bottles together.

The instruction as follows:
1. Invert speed control.
2. Bottle entering, Auto unscrambling bottle, Pushing bottle, Heat sealing-Saw cutting, Pressing PE, Shrink, Cooling.
3. This machine applies air-stirring mechanism in pushing bottle and hot sealing-cool cutting. It uses flat silk pulse seal, the saw tooth knife cuts, The unique heat seal-cool cut mechanism, has guaranteed the packing agglutination, reliable, and artistic.
4. Automatic unscrambling bottle' s appliance makes bottle changing more quickly and conveniently.
5. Delivering film mechanism and the tensity voluntarily adjusts.
6. PLC programmable procedure control system.

7. Double air blowers, guarantees the temperature balance in the shrink stove with PAD temperature controller, that apparently saves energy.
8. It applies wing shape stainless steel heating system, which is durable for long time use.
9. The heatproof Bolivian filament special fluorine dragon transportation net belt is used in shrink part to ensure the steady of transportation and high strengthen wear proof.
10. This machine applies invert speed control net belt conveying mechanism.
11. The height of the conveyer shall be made towards client' s demand.
12. The direction of bottle entering can be adjusted according to client' s demand
13, according customer request, can make the stainless steel belt inside the shrink tunnel instead of plastic belt

Maximum packing size: L]N=450ý 00ý 50mm(to be ordered)
Packing speed: 12B/M
Machine Size: L]N=4700ý 000ý 700mm
Power: 2KW
Power supply: 220V 50HZ
Rated current: 6A
Gas pressure: 0.5-0.7Mpa
Suitable infrared thermo-wind circulation stove:
Vlotage: 380V
Power: 26KW
Transport speed: 0-15m/min
Maximum Tunnel size: 1815ý 00ý 00mm
Machine dimension: L]N=3100ý 600ý 500mm

Remark:
1, If customer request our technicians to install machines, so customer need pay 30USD/day, air return ticketsroom and meals.
2, Guarantee period is 15monthes after machines received.
3, The capacity complete depend on the customer demands . We welcome customer to visit our company ! At any time , you will see the machine working and running in our factory !
