Product Details

Place of Origin:	Jiangsu in China
Packaging Details:	1.80pcs in a carton 2.carton dimension:38cm33cm47cm 3.net weight:17.8kg 4.Gross weight:18.7kg

Specifications

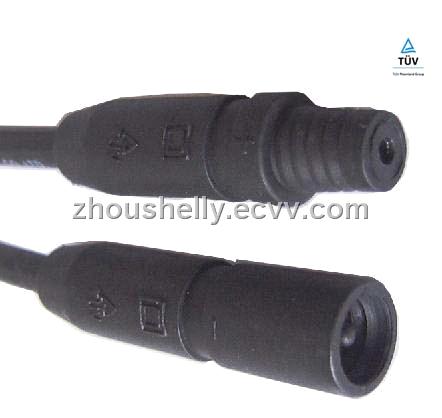

MC3 with solar cable

1.Water proof and dust proof

2.Simple,quick installation

3.compatible with MC3 solar connector

4.competitive price

main feature:

1.Connector adopts touch and insertion of reed with inner-knob type.

2.Auto-lock enable connection more easy and reliable.

3.Popular figure suit most of field installation

Technical data:

Insulation material:PPO/TPE/PA

Rated current:30A

Rated voltage:1000V

Test voltage:6KV(50Hz,1Min)

Contact material: copper, tin plated

Contact resistance:5mΩ

Degree of protection:IP67

Safety class: Ⅱ

Flame calss:UL94-V0

Insertion force: ≤50N

Withdrawal force: ≥50N

Ambient temperature range:-40℃~+90℃

Suitable cable:2.5~6.0mm2AWG14/12/10

shipment

1.we ship to world wide

2.Most orders ship within 1-7 business days on payment received(except holiday)

3.Item shipped from China mainland using airmail by EMS,UPS,DHL,TNT or Hong kong Post Office,reach most of the countries within 6 to 14 business days.

4.Delivery time depends on destination and other factors,it may takes up to 20 business days.

5.After we ship the item,we will email you the shipping information,as well as the tracking number.

6.If it happens to be any duties,taxes and any other fees charged by the courier company and your respective country,the buyers are duty to pay.

Package:

MC3 with 1meter cable:

1.200pcs in a carton

2.Carton dimension:38cm*33cm*47cm

3.net weight:16.6kg

4.Gross wight:17.5kg

MC3 with 3meter cable:

1.80pcs in a carton

2.carton dimension:38cm*33cm*47cm

3.net weight:17.8kg

4.Gross weight:18.7kg

MC3 with 8meter cable:

1.30pcs in a carton

2.carton dimension:38cm*33cm*47cm

3.Net weight:17.2kg

4.Gross weight:18.1kg

MC3 with 12meter cable:

1.25pcs in a carton

2.carton dimension:38cm*33cm*47cm

3.Net weight:21.3kg

4.Gross weight:22.2kg
