Ruian Chuangli Machinery Co., Ltd.

Home >Products Catalog > plastic bag making machine > Double Lines Drum-Linkage Rubbish Bag Bag-Making Mchine/Plastic Bag on Roll Machine

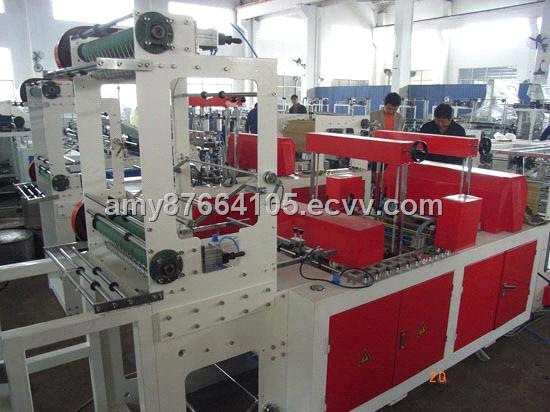

Double Lines Drum-Linkage Rubbish Bag Bag-Making Mchine/Plastic Bag on Roll Machine

Shipping:	30days
Payment Terms:	L/C, T/T(Bank Transfer)

Inquiry Now

Place of Origin:	Zhejiang in China
Packaging Details:	in wooden cases or in bulk

Specifications

This machine is newly designed to produce the 8-folding (Star-sealed) garbags on roll and folded vest bags on roll automatically.

Features:

1. Overall PLC control

2. Both-side of heating the bags so as to seal the thick bags strongly.

3. Two-line to produce the bags with high speed.

4. Inverter to control the main motor and save the electricity.

5. Equipped with servo motor

6. Auto pneumatic cylinder to control the rubber press cylinders.

7. Independent auto coreless changer device

8. Auto counter and auto alarm

Main technical parameters:

Max.Width of bag:450mm

Min.Width of bag: 50mm

Max.Length of bag: 1200mm

Min.Length of bag: 20mm

Materials to be used: HDPE/LDPE

Sealing thickness: 0.024-0.380mm

The kinds of bag making:color printing bag and white bags

Output capacity: 40-160pcs/min *2 lines

Bag making methods: S-type rolling vest bag and 8 folding rolling garbage bag

Total power: 8kw

Dimension(L*W*H): 5000×1850×1800mm

Weight: 2250kg
