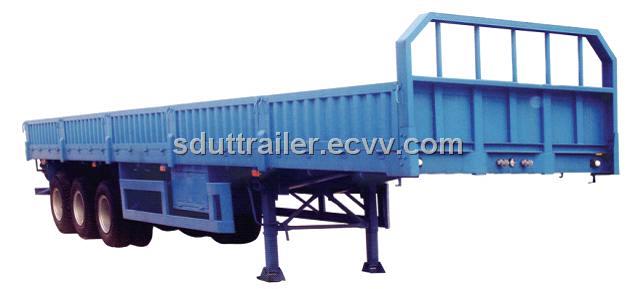

drop side semitrailer

Shipping:	15-30days

Inquiry Now

Related products from verified members

2T Single Shaft/Dump Trailer

Price:

Min. Order:
Box Trailer

Price:

Min. Order:
Garden Tool Cart

Price:30.00 USD/Piece

Min. Order:100 Pieces
30m3 Asphalt Tank Semitrailer

Price:

Min. Order:

Product Details

Packaging Details:	in container

Specifications

SPECIFICATION

GENERAL

LENGTH x WIDTH x HEIGHT 12500 x 2500 x 3000mm

PAY LOAD 30 - 60 tons

RUNNING GEAR

SUSPENSION Air suspension or Mechanical (multi leaf spring) Suspension with equalizer beam

DRUMS Outboard mounted, hub piloted cast steel

HUBS Cast steel 8 or 10 studs

WHEELS Steel disc

TIRES Nylon, radial or tubeless tires, famous brand, include 1 spare tire

AXLES 2, 3 or 4 axle, BPW, SAF, FUWA, LT or ANQIAO brand, 12 – 20 tons payload per axle

BRAKES Dual line brake system, non-asbestos, includes automatic slack adjusters

ABS SYSTEM Available upon request

VALVE WABCO or SEALAND emergency relay valve

BRAKE CHAMBER TGL or FUWA 30/30 chamber, air-actuated

UNDERFRAME

MAIN BEAM I shape, Mild Alloy (Q345B, tensile strength 34.5kg/mm^2) by Automatic submerged arc welding.

CROSS BEAM U shape, Mild Alloy Q345B, tensile strength 34.5kg/m^2

PLATFORM 3mm thickness checkered sheet as floor. U-profile beams with reasonable interval as supporting beam, longitudinal cross member made of U channel. Width of platform is suitable for standard container. Side pillars are available upon request.

SIDE WALL Height 1500mm(600mm closed, 900mm mesh) made of 1.5mm corrugated sheet with 4 nos ratchets each side

KING PIN JOST or FUWA brand, 2", 2.5" or 3.5", welded or bolted in type

LANDING GEAR JOST, FUWA, Baohua Holland brand, Static capacity 25 Tons

MUD FLAPS Anti-sail, mounted on sliding tandem

BUMPER Heavy duty bumper at the end

APPENDIX 1 toolbox

2 Spare tyre carriers

ELECTRICAL & PAINT

LIGHTS, REFLECTORS Rear light, rear reflector, turn indicative light, side reflector, fog lamp, number plate light

WIRING 24V, 6 lines

AIR/ELEC. CONNECTOR ISO standard air connector,

24V 7-pin plug socket

PAINT Sand blasting before painting

2 coat of anticorrosive primer

2 coats of finish urethane paint

Color as per request
