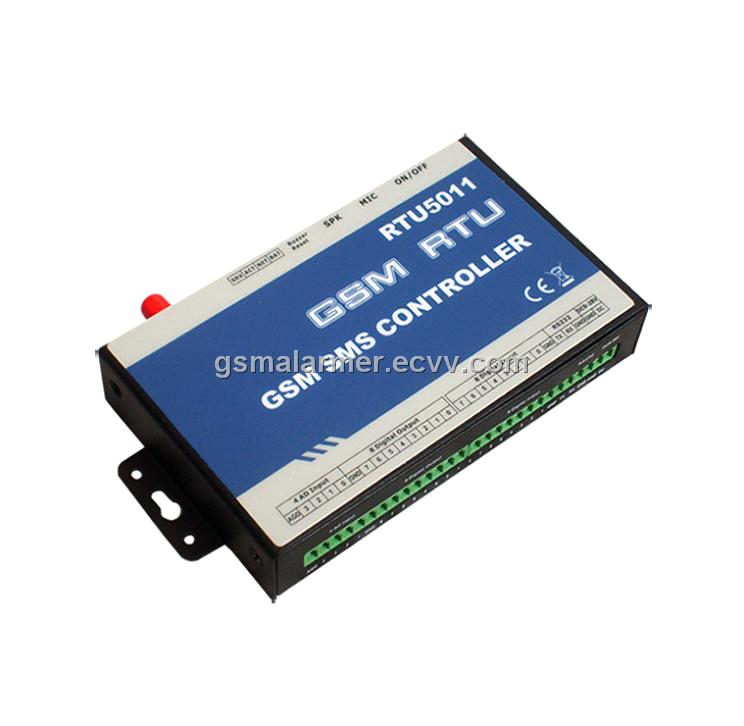

GSM Controller with 8I/O+4AD+ 1RS232
| FOB Price: | 50.00 - 200.00 USD/Set |
|---|---|
| Supply Ability: | 5,000 Set/Sets per Month |
| Shipping: | 3-5 days |
| Payment Terms: | T/T, Western Union |
Related products from verified members
| Place of Origin: | Shenzhen in China |
|---|---|
| Packaging Details: | Mainframe,AC/DC adaptor,User Manual(CD),GSM ANT,RS232Cable |
Specifications
Name: GSM Controller
Model: RTU5011
RTU5011 GSM RTU is designed as a cost effective remote control system alert device. It monitors up to 8 dry contacts and 8 drivable relay outputs and 4 AD input. User-defined SMS is sent to pre-configure mobile phone numbers when a pre-defined alarm condition happens.These pre-configured mobile phone numbers can belong to technicians or engineers who are responsible in handling corresponding alarms. With the aid of this GSM RTU, the alarm condition brings attention to in-charge personnel immediately. Besides it allows those mobile phone users to trigger any relay output by using SMS. The output can be connected with alarm indication device, such as alarm, and others.
Model: RTU5011
RTU5011 GSM RTU is designed as a cost effective remote control system alert device. It monitors up to 8 dry contacts and 8 drivable relay outputs and 4 AD input. User-defined SMS is sent to pre-configure mobile phone numbers when a pre-defined alarm condition happens.These pre-configured mobile phone numbers can belong to technicians or engineers who are responsible in handling corresponding alarms. With the aid of this GSM RTU, the alarm condition brings attention to in-charge personnel immediately. Besides it allows those mobile phone users to trigger any relay output by using SMS. The output can be connected with alarm indication device, such as alarm, and others.
There is a built-in microprocessor chip running on a real-time operating system. It gives immediate response to any change in both inputs and outputs condition. A GSM modem is embedded in the GSM RTU, user has to subscribe a SIM card for the GSM RTU. The GSM RTU can be installed in any location under GSM coverage.
Features:
1. 8 digital inputs, connect dry contact device;
2. 8 relay drivable outputs(12V-24V),drive electricity <0.2A;
3. 4 Analog input, 0-53 Ma,10 precision;
1. 8 digital inputs, connect dry contact device;
2. 8 relay drivable outputs(12V-24V),drive electricity <0.2A;
3. 4 Analog input, 0-53 Ma,10 precision;
4. Reliable performance with built-in double watchdog;
5. Automatic device condition report through SMS every 24 hour interval;
6. User-defined alarm condition (normally close or open), alarm and recovery SMS message for each alarm point; Supporting drive relay output;
7. Maximum of 10 mobile phone numbers can be programmable;
8. Supporting voice monitoring;
9. Inside temperature sensor (optional);
10. Being available for internal battery and providing power cut off alarm (optional);
5. Automatic device condition report through SMS every 24 hour interval;
6. User-defined alarm condition (normally close or open), alarm and recovery SMS message for each alarm point; Supporting drive relay output;
7. Maximum of 10 mobile phone numbers can be programmable;
8. Supporting voice monitoring;
9. Inside temperature sensor (optional);
10. Being available for internal battery and providing power cut off alarm (optional);
11. Configuration can be done via COM port.
