Expanded Machine

Inquiry Now

Specifications

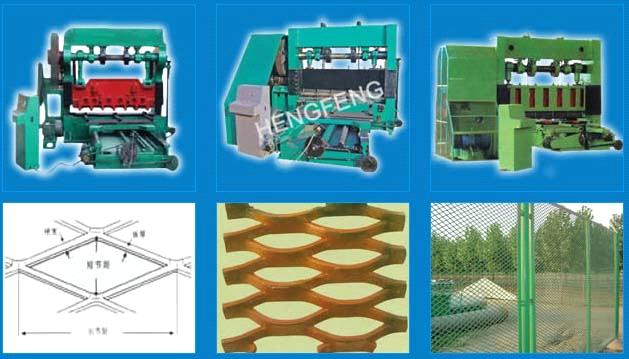

My factory produces various types of steel nets shearing machine, mainly used for light industry, gangbanwang appliances, microelectronics, hardware, micro cell until fields. can also be blunt manufacturing stainless steel, aluminum and other material plate nets, its usage is very wide, the machine uses no oil lubrication, feed stepless speed regulation, automatic cut of advanced technologles.

Light Expanded Metal Machin

Main Parameter
TYPE	DEPTH	WIDTH	TIEMS	DISTANCE	LENGTH OF MESH	MOTOR	WEIGHT	MEASUREMEENT
CJ25-6.3	<=1.0mm	750mm	180/min	0-1.15mm	<=20mm	2.2KW	0.95T	1190X710X1450
CJ25-16	<=1.0mm	1000mm	150/min	0-1.2mm	<=30mm	3KW	2.5T	1800X1320X1550

Medium Expanded Metal Machine

Main Parameter
TYPE	DEPTH	WIDTH	TIEMS	DISTANCE	LENGTH OF MESH	MOTOR	WEIGHT	MEASUREMEENT
CJ25-25	<=1.2mm	1250mm	150/min	0-1.2mm	<=25mm	4KW	3.5T	1940X1600X1800
CJ25-40	<=1.5mm	1500mm	120/min	0-1.5mm	<=30mm	5.5KW	5.5T	2200X1800X2010

Heavy Expanded Metal Machine

Main Parameter
TYPE	DEPTH	WIDTH	TIEMS	DISTANCE	LENGTH OF MESH	MOTOR	WEIGHT	MEASUREMEENT
CJ25-63	<=3mm	2000mm	60/min	0-4mm	<=200mm	11KW	11T	2400X3500X2300
CJ25-100	<=4.5mm	2000mm	55/min	0-7mm	<=200mm	18KW	13T	3500X2500X3300
CJ25-160	<=8mm	2000mm	45/min	0-7mm	<=160mm	30KW	21T	3000X3200X4110
