Beijing Guohao Qingyuan Technology Co., Ltd.
China Manufacturer with main products: Fanless Computer, Mini PC, Mini ITX Motherboard, Embedded Motherboard, Tablet PC, Panel PC |

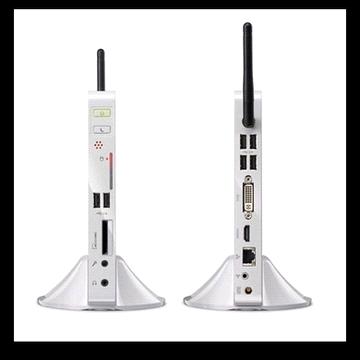

Mini HTPC( GBOX-SZ5001)
-
ECVV Safebuy Services
According to the requirements of buyers, ECVV.com will purchase the cost-effective Chinese products for you from the well-chosen suppliers database which was accumulated in the past 10 years.Learn More>>
-
Safebuy Service Guarantee
Provide financial security for multinational purchaser; Determine delivery time and acceptance product according to the purchasing requirements; Arrange Chinese export declarations and international logistics; Provide unified delivery of products from different suppliers.
| Place of Origin: | Beijing in China |
|---|
Specifications
|
Model
|
GBOX-SZ5001
|
|
|
Structure
|
High-strength aluminum alloy structure
|
|
|
Panel
|
Customizable LOGO
|
|
|
The Main Performance
|
Device Type
|
Digital media player
|
|
|
Processor
|
Onboard Intel ATOM 330 1.6GH (Dual Core)
Front Side Bus 533 MHz
|
|
|
Chipset
|
NVIDIA MCP79-ION, NVIDIA 9400 VGA intergrated
|
|
|
Memory
|
2G
|
|
|
Memory Type
|
DDR2
|
|
|
HDD
|
320G
|
|
|
HDD Description
|
7200 SATA 2.5-inch (room temperature)
|
|
Audio/Video
|
Card Type
|
Integration
|
|
|
Display Card
|
Built-in NVIDIA 9400 GPU
Default 256M, 512M maximum
|
|
|
Sound Card
|
Azalia compatible audio decoder, to provide 1 x LINE-IN and 1 x LINE-OUT.
Support for DTS, Dolby Dolby audio decoding;
|
|
Media format(with AP S/W)
|
Audio Codec
|
Dual-channel,MPEG-1 Layers I, II and III (MP3), 16-bit PCM, bit rate up to 384 kbps, sample rate up to 48 KH, AC3,AAC.., etc (depends on S/W codec)
|
|
|
Flash format
|
SWF
|
|
|
Still Image Format
|
JPEG, BMP, TIFF, GIF, PNG
|
|
|
Text
|
Fixed Text, Live RSS Feed
|
|
|
Video
codec
|
WMV, H.264, MPEG 2/4
|
|
|
Video Format
|
MPG, MPEG, AVI, WMV, MP4, RM, RMVB, VOB, TS
(Note: The above video format video decoder supporting players needed) Up to 1080PG |
|
Player Features(with AP S/W)
|
Playlists
|
Scheduling playback, endless loop playback, auto play after power
|
|
|
Plan Update
|
LAN, WAN, or USB storage
|
|
|
Rolling Text
|
Variable scrolling speed and position
|
|
Power
|
Consumption
|
Average 10W
|
|
|
Power
|
12 V DC ~19 V DC , 2A mini
|
|
Operating Evo
|
Working Temperature
|
0 ~ 45° C
|
|
|
Relative Humidity
|
95% @ 40° C (non-condensing), Operating
|
|
|
Storage Temperature
|
-20° C ~ 80° C
|
|
|
Seismic
|
1 Grms (CF Version) / 0.5 Grms (HD Version), IEC 60068-2-64, Random, 5 ~ 500 Hz, 1hr/axis
|
|
Network Specification
|
Wired LAN
|
GigaLAN 1 x RJ45
|
|
|
Wireless
|
Optional (via MiniPCIe module)
|
|
Expansion Bus
|
1*MINI PCI-E slot
|
|
|
I/O ports
|
6* USB 2.0/1.1
1*DVI interface
1*HDMI interface
1 * RJ45 interface
1 audio interface
1*12V jack
1*WIFI
1 power on / off button / 1 reset button
|
|
|
Watchdog
|
Programmable Watchdog Timer 256 time to interrupt, reset the system time to the event
|
|
|
Packing
|
Color Box Dimension: ? ×? ×? mm(W×D×H)
Cases Gross Weight: ? KGS
Cases Net Weight: 1.8KGS
1PCS / Cases, Case size : ?L) x ?(W) x ?(H)mm
|
|
|
Indicator
|
Power indicator (green), hard disk indicator (red)
|
|
|
Color
|
Black , white(Optional)
|
|
|
Installation
|
Desktop installation and vertical installation
|
|
|
Weight
|
2.5KG
|
|
|
Size
|
204×197×70mm(W×D×H)
|
|
|
After-sale Service
|
3 years (The first years of free , paid two years after)
|
|
