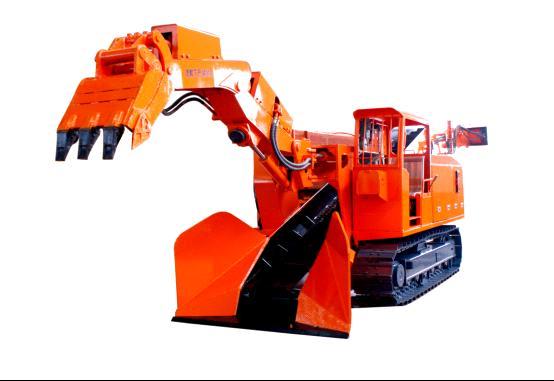

Underground Loader (MS-120)

In Stock

Inquiry Now

Place of Origin:	Fujian in China
Packaging Details:	Container, Ro-Ro

Specifications

MS-120 underground loader

Item		Unit	MS-120 Crawler Mucking Loader( Big Slope Type)
Whole weight		kg	≈13200
Loading capacity		m3/h	≈120
			Long arm	Short arm
Excavating width		mm	≤5900	≤5300
Excavating height		mm	≤2370	≤1970
Excavating distance( shovel)		mm	≤3390	≤3090
Excavating depth		mm	≤600	≤600
Unloading height		mm	1760~2100(changeable)
Unloading distance		mm	3300( changeable)
Travelling speed		m/s	0.7±5%
Scraper chain speed		m/min	34
Scraper transfer mechanism			Double chain double motor
Climbing slope ability		°	≤35( hard floor)
Suitable laneway slope		°	≤30
Min.turning radius		m	≤6
Rated working pressure		MPa	≤28
Average grounding pressure		MPa	≤0.1
Gradeability		mm	≥360
Total power		mm	55
Controlling method		kW	Hydraulic
Crawler inner width		mm	1120
Max.material dimension(W×H)		mm	620×740
Max.arm slewing angle		°	±55
Dimension ( working state)	Length	mm	≥9200		≥9000
	Width	mm	1830		1830
	Height	mm	≥2350		≥2350
Dimension ( stationary state)	Length	mm	≥10385		≥10185
	Width	mm	1830		1830
	Height	mm	≥2680		≥2680
