Nanjing Dreams Machinery Equipment Factory
China Manufacturer with main products: Metal Marking Machine, Electro-Chemical Marking Machine, Laser Etched Machine, Pneumatic Marking Machine, CO2 Laser Marking Machine,... |
Related products from verified members
| Place of Origin: | Jiangsu in China |
|---|
Specifications
Model Features

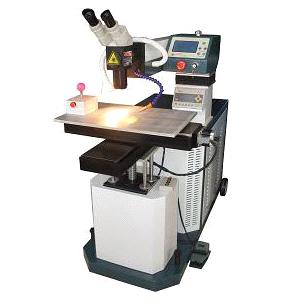

The machine uses the design of lasers, laser power supply, inner loop cooling system, control system, numerical control systems with Workbench Integration, With a charactor of reliable, compact structure, beautiful appearance, convenient operation, small footprint and so on. And use the switching power supply, through the touch control panel choosing laser output power, frequency and pulse width parameters. With the fuction of misuse and over-temperature protection.
By remote control or touch control panel you can select the laser output power, frequency and pulse width and other parameters, and setting the table movement speed, controlling the move of workbench ,around the front and rear bench, so that the welding parameters match and welding requirement , resulting in formation of The weld or solder joints ,in order to achieve optimal welding results.
CNC table driven approach: Imported PLC control, CNC work table stable operation and high accuracy.
materials applicated and industrial applications
Machine is not only a special packaging equipment in the battery industry, but also can be used for relays, sensors, other kinds of electronic components and other metal materials and welding.
Welding graphics: point, line, round, circular, square and so on.
The main advantage
1. Use ceramic condenser cavity imported from British , corrosion resistance, high temperature, chamber life (8-10) years, the xenon lamp life is more than 8 million times.
2. Adopting the world's most advanced automated shading system, eliminating the stimulation of laser to eyes.
3. Laser head can rotate 360 degrees, part of the overall optical path can rotate 360 degrees, as well as electric lifts up and down, promotion from the front and the back .
4. Spot size can be adjusted by electric .
5. Either manual welding, but also realizing the automation production of mass products
technical parameter
|
|
DR-HJP180
|
|
Machine size
|
1170mm*590mm*1250mm
|
|
Rated output power
|
180W
|
|
Table-axis travel
|
200*200mm-1200*1200mm(Optional)(Z-axis electrically adjustable)
|
|
Part of the overall laser
|
Optical bench can be electric lift, rotate 360 º
|
|
Machine weight
|
300KG
|
|
Machine power
|
220V±10%/50HZ or 380V±10%/50HZ
|
|
Laser parameters
|
|
|
Laser type
|
Nd: YAG pulse
|
|
Spot adjustment range
|
0.1~3.0mm
|
|
Spot size of
|
0.2~3.0mm
|
|
Laser wavelength
|
1064nm
|
|
Total Power
|
9KW
|
|
Welding depth of
|
≤2mm
|
|
Pulse width
|
0.1~25ms
|
|
Pulse frequency
|
≤40HZ
|
|
Laser output focal length
|
80mm/100mm/120mm/200mm(optional)
|
|
Laser Cooling
|
water
|
|
observation system
|
Microscope(can be rotated 360 º)
|
|
Shielding gas
|
one way
|
