| Place of Origin: | Shandong in China |
|---|
Specifications

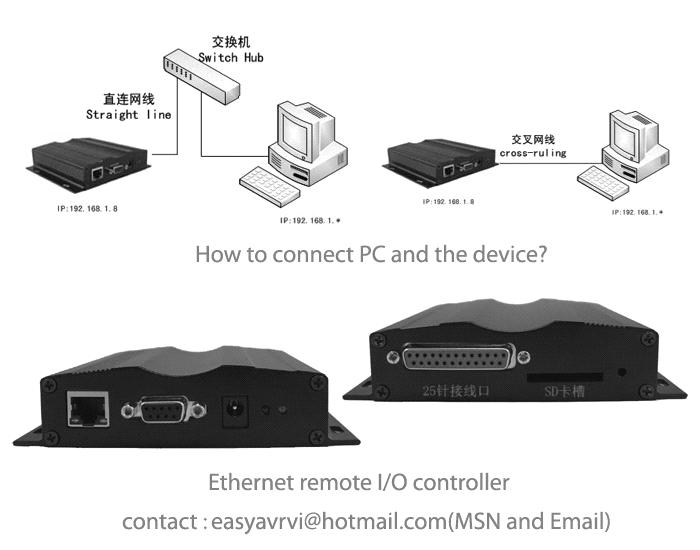

Ethernet remote I/O controller, designed and manufactured by Jinan Intelligent Embedded M&C Co., Ltd, is a flexible and general purpose I/O device. With the assistance of the Internet, users could use this device to monitor and control remote devices in the form of opening webpages.
Ethernet remote I/O controller is configured to operate in various modes.Its available modes include digital inputs (DI), digital outputs (DO), analog inputs (AI) and analog outputs (AO). Besides, Ethernet remote IO controller also supports temperature-humidity gathering and the data exchanging between ports. With this variety of modes available,the device is capable of monitoring and controlling many different processes and applications.
It can be used within Extranet and Internet thanks to its capability of crossing the gateways.Ethernet remote I/O controller can be widely used in many internet communication protocols, for example, DHCP ,NTP,TCP,UDP and etc.. The function achieves network communications.
The following are some basic features of Ethernet remote IO controller:
1) Since devices are connected to the Internet, users can monitor and control his devices anytime and anywhere.
2) The controller can realize real Enthernet operation by crossing gateways.
3) Its built-in HTTP protocols permit us to monitor and control our devices freely just by opening the websites.
4) Due to its perfect password verfication, only authorized users could do the operation.
5) Ethernet remote I/O controller features 24 configurable I/O lines which includes DI,DO,AI,AO and temperature-himidity gathering.
6) Thanks to its built-in SD card, users can upload web file via ftp and replace the default websites.
7) It also could be used as serial interface service, so that data can be transmitted between TCP and RS232 transparently.
8) After users input the right passwords, Ethernet remote I/O controller could work under TCP client and TCP server.
9) Due to its reliable multi-verification, it has good ability of preventing surge current and anti-interference.
10) Ethernet remote I/O controller has a built-in watchdog.
11) Thanks to its high-speed CPU and specialized netcards chip, so that the system is quite stable and reliable.
In view of different port quantities and functions, there are three different applications about Ethernet remote I/O controller:
First, NE-Ethernet I/O-8I8O: it means there are 8 digital input ports and 8 digital output ports;
Second, NE-Ethernet I/O-4I4O8A: it means there are 4 digital input ports, 4 digital output ports and 8 analog input ports;
Third, NE-Ethernet I/O-4I4O4A4T: it means there are 4 digital input ports, 4 digital output ports, 4 analog input ports and 4 temperature-humidity gathering ports.
The introduction of product parameters:
1) The dimension of the device is 113mm*129mm*30mm
2) Ethernet remote I/O controller needs DC 9V power, which is included in the standard package.
3) Operating temperature: -25 ～ +85℃
4) Operating humidity: 5% ～ 95% RH
5) Controlling method: HTTP web-logging control, TCP cilent commanding control and RS232 commanding control.
6) Security authentication:Name and password should be typed in when users open the website.Similarly, it needs password when users doTCP connection.
7) Network Setting parameters:
IP address: 192.168.0.8
Subnet mask: 255.255.255.0
Default gateway: 192.168.0.1
DNS address: 202.102.128.68
NTP address: 220.130.158.72
8) Serial communication interface:
Communication rate: 115200
Communication forma: N, 8, 1
Working mode: TCP Server , TCP Client
The package of our Ethernet remote I/O controller includes:
One device;
One standard network cable;
One 9V DC power adapter
One CD(incluing ScomAssistant manual)
