Chengdu Neton Optoelectronic Technologies Co., Ltd.
China Manufacturer with main products: Optical Module, SFP+ transceiver module, SFP Transceiver Module, GEPON Transceiver Module, 1x9 Transceiver Module, 2x5 Transceiver Module,... |
Optical Module
| FOB Price: | 8.00 - 200.00 USD/Piece |
|---|---|
| Supply Ability: | 2,000,000 Piece/Pieces per Year |
| Shipping: | 2 to 15 days |
| Payment Terms: | T/T(Bank Transfer) |
Related products from verified members
| Place of Origin: | Sichuan in China |
|---|---|
| Packaging Details: | 10PCS Plastic Box, 10 Boxes Per CTN |
Specifications
Optical Module:
Strict QC Inspection: CB, UL, ROHS, FDA, etc;
Package: SFP, XFP, SFP+, SFF, 1x9, 2x5, etc.
Data Rate: 500kbps to 10Gbps.
NETON optical modules: SFP+ Transceiver Module, XFP Transceiver Module, SFP Transceiver Module, CWDM Transceiver Module, GBIC Transceiver Module, GPON Transceiver Module, 1x9 Transceiver Module, 2x5 Transceiver Module, SFF Transceiver Module and so on, with the international authorized certificates ISO, CE, CB, UL, ROHS, FDA, etc, have been sold to more than 20 countries and regions and been widely used for Ethernet, Fiber Channel, ATM, SONET/SPH, Switches, Routers, Hubs, Digital Video Transmission and other optic networking applications.

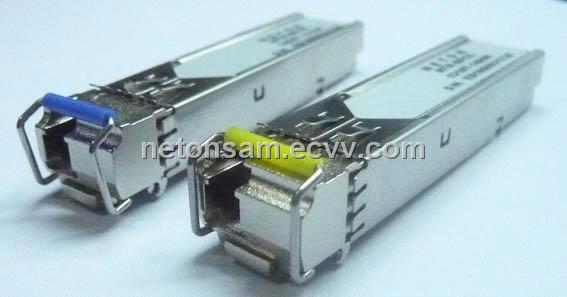

1. Features of NETON SFP Transceiver Module:
1. Dual fiber SFP transceiver;
2. Transmitter center wavelength: 1310nm, 1550nm;
3. Data rate from 155Mbps to 2.5Gbps;
4. Single 3.3V power supply;
5. Distance SR, IR1, IR2, LR1, LR2;
6. Monitoring interface compatible with SFF-8472;
7. Operating temperature 0C to +70C or -40C to 85C
2. Features of NETON CWDM Transceiver Module:
1. 18-wavelength CWDM DFB LD transmitter from 1270nm to 1610nm;
2. Single 3.3V, 5.0V, 3.3V/5.0V power supply;
3. SC/FC/ST single or double receptacle or pigtail SC/PC, ST/PC, FC/PC optional;
4. 1 X 9, SFF, SFP package optional;
5. Operating temperature 0C to +70C.
3. Features of NETON 1x9 Bi-Di Transceiver Module:
1. Single fiberBi-Directional transceiver, 1 * 9 package;
2. Transmitter center wavelength: 1310nm, 1550nm;
3. Data rate from 500Kbps to 1.25Gbps;
4. Single 3.3V, 5.0V, 3.3V/5.0V power supply;
5. SC/FC/ST single or double receptacle or pigtail SC/PC, ST/PC, FC/PC optional;
6. Distance SR, IR1, IR2, LR1, LR2;
7. Operating temperature 0C to +70C or -40C to 85C.
4. Features of NETON 1x9 Transceiver Module:
1. Dual-fiber transceiver, 1 * 9 package;
2. Transmitter center wavelength: 1310nm, 1550nm;
3. Data rate from 500Kbps to 2.5Gbps;
4. Single 3.3V, 5.0V, 3.3V/5.0V power supply;
5. SC/FC/ST receptacle or pigtail SC/PC, ST/PC, FC/PC optional;
6. Distance SR, IR1, IR2, LR1, LR2;
7. Operating temperature 0C to +70C.
5. Features of NETON SFP Bi-Di Transceiver Module (LC/SC):
1. Transmitter center wavelength: 1310nm, 1550nm;
2. Data rate from 155Mbps to 1.25Gbps;
3. Single 3.3V power supply;
4. Single LC/SC receptacle;
5. Distance SR, IR1, IR2, LR1, LR2;
6. Monitoring interface compatible with SFF-8472;
6. Features of NETON SFF Transceiver Module:
1. Industry standard small form factor (SFF) Package;
2. Transmitter center wavelength: 1310nm, 1550nm;
3. Data rate from 155Mbps to 1.25Gbps;
4. Single 3.3V power supply;
5. LC optic receptacle;
6. Standard 2 × 5 pin footprint (MSA Compliant);
7. Distance SR, IR1, IR2, LR1, LR2;
8. Operating temperature 0C to +70Cor -40C to +85C.
7. Features of NETON 2x5 Transceiver Module:
1. Single fiber small form factor (SFF) Package;
2. Transmitter center wavelength: 1310nm, 1550nm;
3. Data rate from 155Mbps to 2.5Gbps;
4. Single 3.3V power supply;
5. SC/FC/ST single receptacle or pigtail SC/PC, ST/PC, FC/PC optional;
6. Distance SR, IR1, IR2, LR1, LR2;
7. Operating temperature 0C to +70Cor -40C to +85C.
8. Product Features of NETON GEPON Transceiver Module:
1. IEEE802.3ah Gigabit Ethernet compliant;
2. 1310nm Burst Mode 1.25Gbps transmitter and 1490nm Continuous Mode 1.25Gbps receiver;
3. Single 3.3V power supply;
4. SC receptacle or pigtail SC 2×5 SFF or SC receptacle SFP package optional;
4. Operating Temperature: 0°C~+70°C;
5. RoHS compliant
