German Netcca Group Co., Ltd.
China Manufacturer with main products: NETCCA UPS, INVERTER, AVR, EPS, BATTERY, CHARGER |

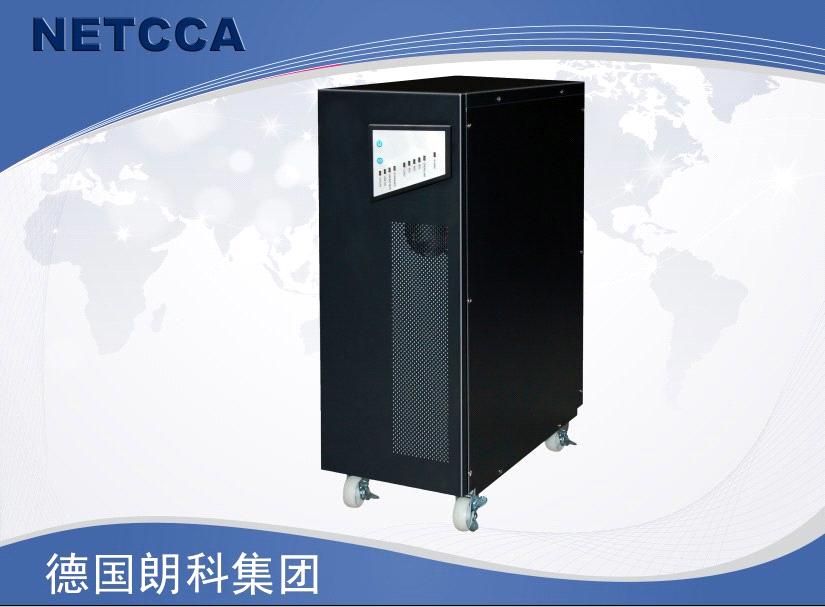

NETCCA HIGH FREQUENCE ONLINE UPS INVERTER 6-20KVA
| Supply Ability: | 1,000 Piece/Pieces per Week |
|---|---|
| Shipping: | 15DAYS |
| Payment Terms: | L/C, T/T |
-
ECVV Safebuy Services
According to the requirements of buyers, ECVV.com will purchase the cost-effective Chinese products for you from the well-chosen suppliers database which was accumulated in the past 10 years.Learn More>>
-
Safebuy Service Guarantee
Provide financial security for multinational purchaser; Determine delivery time and acceptance product according to the purchasing requirements; Arrange Chinese export declarations and international logistics; Provide unified delivery of products from different suppliers.
Related products from verified members
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Guangdong in China |
| Packaging Details: | EXPORT PACKING |
Specifications
Feature:
double conversion high frequence online techology,
smart online communication interface,
bypass output,
strong capacityof resisting disturbance,
DC start-up, powerful charge up ability,
automatic restart function, possible to colocate with power generator,
able to connect with inductive load.
|
Model
|
PV1063
|
PV1063S
|
PV1103
|
PV1103S
|
PV3103S
|
PV3153S
|
PV3203S
|
|||
|
Rated Capacity
|
6KVA
|
10KVA
|
15KVA
|
20KVA
|
||||||
|
Input
|
Current
|
31A
|
50A
|
75A
|
100A
|
|||||
|
Voltage
|
176~276VAC
|
304~478VAC
|
||||||||
|
Wire
|
Single phase with two lines+ ground wire
|
Three phase with four lines+ ground wire
|
||||||||
|
Frequency
|
46~54Hz
|
|||||||||
|
Output
|
Current
|
27A
|
45A
|
68A
|
91A
|
|||||
|
Voltage
|
220*(1±1%)VAC
|
|||||||||
|
Frequency
|
Synchronized with the power grid (Main power mode); 50*(1±0.1%)Hz(Battery mode)
|
|||||||||
|
Waveform
|
Sine wave form
|
|||||||||
|
Overload
|
105%~130% transfer to bypass after 10min,above 150% after 1 min
|
|||||||||
|
Transfer
|
Zero Conversion
|
|||||||||
|
Battery
|
Type
|
Valve Regulated Lead Acid Battery
|
||||||||
|
Back
-up
|
Full
|
>7min
|
—
|
>5min
|
—
|
—
|
—
|
—
|
||
|
Half
|
>20min
|
—
|
>13min
|
—
|
—
|
—
|
—
|
|||
|
Voltage
|
240VDC
|
|||||||||
|
Environment
|
Temperature
|
0℃~40℃
|
||||||||
|
Humidity
|
0%~90%
|
|||||||||
|
Dimension
(mm)
|
Machine
|
550*255*720
|
||||||||
|
Package
|
730*440*910
|
|||||||||
|
Weight
(kg)
|
N.W.
|
79
|
33
|
81.5
|
35
|
39
|
53
|
53
|
||
|
G.W.
|
87.5
|
41.5
|
90
|
43.5
|
57.5
|
61.5
|
61.5
|
|||
Remarks: Products specifications are subject to change without notice
Designated as an OEM production enterprise and sales base in China by German NETCCA Electronic Power Co., Ltd, we devote ourselves to the development, production and sales of UPS, lithium iron phosphate UPS, EPS, INVERTER, Pure Wave Communication Power Supply, Moving Power Supply and so on.
If you looking for continuous power protection then we’re here to help.Need a quotation or guidance with no obligation? No problem, just contact us.
Contact person: Van
Skype: headuff
MSN: ryannetcca@ msn.cn
E-mail:van@ netcca.com
Address: No.55, JiLi Industrial Park, Nanzhuang, Foshan City,Guangdong,P.R.China
