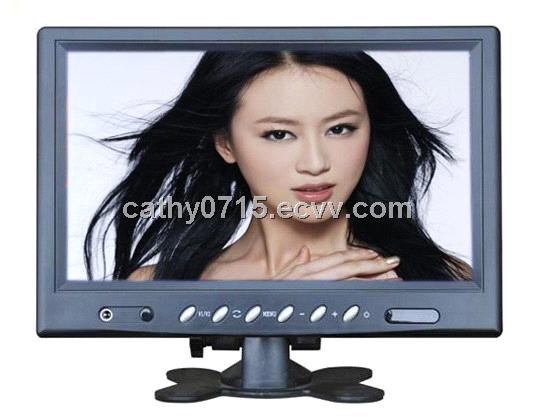

9 Inch TFT LCD Touch Screen

Supply Ability:	5,000 Piece/Pieces per Month
Shipping:	5-14 days
Payment Terms:	T/T, Paypal, Western Union

Inquiry Now Start Safebuy Order

ECVV Safebuy Services

According to the requirements of buyers, ECVV.com will purchase the cost-effective Chinese products for you from the well-chosen suppliers database which was accumulated in the past 10 years.Learn More>>
Safebuy Service Guarantee

Provide financial security for multinational purchaser; Determine delivery time and acceptance product according to the purchasing requirements; Arrange Chinese export declarations and international logistics; Provide unified delivery of products from different suppliers.

Related products from verified members

RC701 Wireless FPV 7" LCD SCREEN DIVERSITY...

Price:200.00-250.00 USD/Piece

Min. Order:1 Piece
A825 high power Big LCD screen Portable Amplifi...

Price:20.00-25.00 USD/Set

Min. Order:100 Sets
19-inch Resistance LCD Touch Screen with 8,000:...

Price:

Min. Order:50 Pieces

Product Details

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin:	Guangdong in China
Packaging Details:	giftbox,carton packing, customized package

Specifications

Features

Four wires resistive touch-screen interface with high Sensitivity (USB port/RS232 optional)
Standard VGA input (15 pin D-SUB/USB) can match with PC, GPS and security systems
Two RCA video input can match with VCD, DVD and camera
RGB input for navigation display (optional)
Touch-screen for PC display (optional)
Built-in speaker/amplifier and earphone jack
Operating Systems: DOS/Windows 9X ME 2K XP 7 Vista NT CE / LINUX / Mac, ect.

Can support almost all kinds of resolution

*9″Digital TFT Touch Monitor

*Model: ST901
*Description: 9″ TFT Touch Monitor

*Case/Bezel Color: Black/silver

*Touch Monitor Performance: Standard

*Display Type: 16:9 Ratio 9″Active Matrix TFT LCD

*Active Display Area: 152.4(H) X 91.44(V) mm

*Native Resolution: 800 x 480 @ 60Hz _1024 x 768 @ 75Hz

*Sychronization Range: 30-80 KHz horizontal, 55-75 Hz Vertical

*Pixel Pitch: 0.1905(W) X 0.1905(H) mm

*Pixel Response Time Rise + Fall (Typically): 12ms

*Plug and Play: VESA DDC 1/2B

*On Screen Display (OSD): Remote OSD

*Colors: 16.7 million

*Brightness: 350 cd/m2

*Contrast Ratio Typically: 400:1

*Viewing Angle Horizontal (left/right): 170° (85°/85°)

* (From Centre, CR>=5) Vertical (up/down): 160° (70°/90°)

*Backlight Lamp life Hrs to 1/2 brightness: 50,000

*Input Video Format: Analog RGB, NTSC/PAL/SCAME(AUTO)

*Touch screen Interface: Serial (RS232) or USB

*Touch Response Time Serial/USB: 10.4ms

*Touch Sensitivity: Fixed

*Operating System: DOS/Windows 9X ME 2K XP 7 Vista NT CE / LINUX / Mac, ect.

*Monitor Dimensions: 180 x 123 x 30(mm)

*Provider Weight (approximately) Monitor/Shipping: 1.5kg

*Power Supply: External: 85-265VAC, 50-60 Hz

*Power Consumption: <10 W Typ

*Temperature Range: Operating:0℃-50℃,

Storage:-20℃-80℃

*Relative Humidity Non Condensing: Operating:10%-90%, Storage 5%-90%

*Warranty: 1 year

*Agency Approvals: FCC, CE, ROHS

Available Touchscreen options

resistive touch screen	4-wire
	5-wire
	8-wire
Glass Type Thickness	Normal Strength 4mm
	Tempered Strength 6mm
Surface Treatment	Clear (polished)
	Anti-glare

Accessories

Serial or USB cable

VGA Video cable

Remote

Power Supply Adaptor

Power Lead (US, EU or UK type)

Software CD

User Manual (English only)

Touch Pen

Bracket

Typical Applications

Gaming/Casino Systems

Outdoor and indoor Kiosks

Entertainment

Transport and Ticketing

Hospitality

Car PC

Industry equipment

Banking

Customised Solutions
