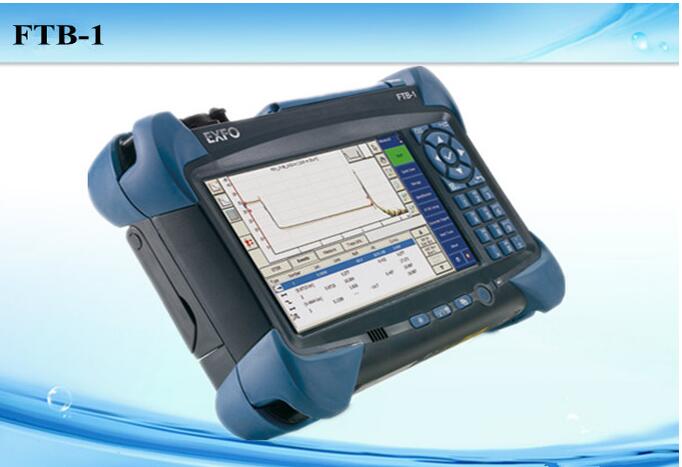

EXFO OTDR FTB-1 with FTB-700 SM/MM OTDR Module FTB-1 platform
| Payment Terms: | T/T |
|---|
-
ECVV Safebuy Services
According to the requirements of buyers, ECVV.com will purchase the cost-effective Chinese products for you from the well-chosen suppliers database which was accumulated in the past 10 years.Learn More>>
-
Safebuy Service Guarantee
Provide financial security for multinational purchaser; Determine delivery time and acceptance product according to the purchasing requirements; Arrange Chinese export declarations and international logistics; Provide unified delivery of products from different suppliers.
Related products from verified members
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Canada |
Quick Details
- Model Number: FTB-1
- Brand Name: EXFO
Specifications
EXFO OTDR FTB-1 with FTB-700 SM/MM OTDR Module FTB-1 platform
IN STOCK!
Platform: FTB-1
|
Display
|
Touchscreen, color, 640 x 480 TFT 163 mm (6.4 in)
|
|
Interfaces
|
USB A main USB B remote RJ-45 LAN 10/100 Mb/s Compact Flash Fiber inspection probe connector port (video)
|
|
Storage
|
Internal 80 MB (Flash) USB sticks 1 GB and 2 GB (optional) Compact Flash cards (optional)
|
|
Batteries
|
Rechargeable Li-Ion 8 h of operation as per Bellcore TR-NWT-001138
|
|
Power Supply
|
AC/DC adapter, input 100-240 VAC, 50-60 Hz, 2 A max, output: 24 VDC, 90 W
|
|
GENERAL SPECIFICATIONS
|
|
|
Temperature
|
|
|
Operating
|
-5 °C to 50°C
|
|
Storage
|
-40 °C to 70 °C
|
|
Relative humidity
|
0 % to 95 % non-condensing
|
|
Size (H x W x D)
|
322 mm x 197 mm x 109 mm (12 11/16 in x 7 3/4 in x 4 5/16 in)
|
|
Weight
|
2.5 kg (5.4 lb)
|
|
Vibration
|
< 1.5 g at 10 Hz to 500 Hz (on three main axes)
|
|
Mechanical shock
|
< 760 mm on six sides and eight main edges (according to GR-196-CORE)
|
OTDR FTB-700 Series Module:
| FTB-720-000-04B | FTB-720-000-04B-XX, SM OTDR Module, Filtered 1625 nm, 34 dB (9/125 μm) for live fiber testing |
| FTB-720-023B-04B | FTB-720-023B-04-XX, SM OTDR Module Port 1 : 1310/1550 nm, 36/34 dB (9/125 μm) Port 2 : Filtered 1625 nm, 34 dB (9/125 μm) for live fiber testing |
| FTB-720-023B | FTB-720-023B-XX, SM OTDR Module, 1310/1550 nm, 36/34 dB (9/125 μm) |
| FTB-720-12CD | FTB-720-12CD-XX, MM OTDR Module, 850/1300 nm, 27/26 dB (50/125 & 62.5/125 μm) |
| FTB-720-12CD-23B | FTB-720-12CD-23B-XX-XX, MM/SM OTDR Module, 850/1300/1310/1550 nm, 27/26/36/34 dB (MM: 50/125 & 62.5/125 μm - SM: 9/125 μm) |
| FTB-730-000-04B | FTB-730-000-04B-XX, SM OTDR Module, Filtered 1625 nm, 39 dB (9/125 μm) for live fiber testing with in-line power meter (one broadband channel) |
| FTB-730-000-08B | FTB-730-000-08B-XX, SM OTDR Module, Filtered 1650 nm, 37 dB (9/125 μm) for live fiber testing |
| FTB-730-023B-04B | FTB-730-023B-04-XX, SM OTDR Module Port 1 : 1310/1550 nm, 39/37 dB (9/125 μm) Port 2 : Filtered 1625 nm, 39 dB (9/125 μm) for live fiber testing with in-line power meter (one broadband channel) |
| FTB-730-023B | FTB-730-023B-XX, SM OTDR Module, 1310/1550 nm, 39/37 dB (9/125 μm) |
| FTB-730-034B | FTB-730-034B-XX, SM OTDR Module, 1550/1625 nm, 37/37 dB (9/125 μm) |
| FTB-730-236B | FTB-730-236B-XX, SM OTDR Module, 1310/1490/1550 nm, 39/35/37 dB (9/125 μm) |
SDH TEST MODULE FTB-810 NetBlazer Transport up to 2.5G:
| FTB-810 |
2.5Gbit/s NetBlazer Transport Tester Supports DSn/PDH and SONET/SDH up to 2.5Gbit/s Optical Interface: Optical reach will be determined by selected transceivers. - SFP Transceiver must be specified. Optical Rates (ENABLED by Default) : - OC-3/STM-1 (155Mb/s) Electrical Interfaces (ENABLED by Default): - DS1/2M (E1) TX/RX: Bantam and RJ-48c connectors - 2M (E1), DS3/34M (E3): TX/RX BNC connectors - STS-1/STS-3c/STM-0e/STM-1e/140M: TX/RX BNC connectors - Ext. CLK DS1/2M Input/output: BNC connector Note: Rates enabled by default in this model are listed explicitly in the description. Additional rates can be enabled as well with additional options. |
SDH TEST MODULE FTB-810G NetBlazer Transport up to 10G:
| FTB-810G |
10Gbit/s NetBlazer Transport Tester Supports DSn/PDH and SONET/SDH up to 10Gbit/s Optical Interfaces: Optical reach will be determined by selected transceivers. - SFP and SFP+ Transceivers must be specified. Optical Rates (ENABLED by Default) : - OC-3/STM-1, OC-12/STM-4, OC-48/STM-16, OC-192/STM-64 Electrical Interfaces (ENABLED by Default): - DS1/2M (E1) TX/RX: Bantam and RJ-48c connectors - 2M (E1), DS3/34M (E3): TX/RX BNC connectors - STS-1/STS-3c/STM-0e/STM-1e/140M: TX/RX BNC connectors - Ext. CLK DS1/2M Input/output: BNC connector Note: Rates enabled by default in this model are listed explicitly in the description. Additional rates can be enabled as well with additional options. |
Ethernet Test Module FTB-860 NetBlazer Gigabit:
| FTB-860 |
10/100/1000 Electrical & 1000 Optical Ethernet Test Module and Fibre Channel 1,2,4X Ethernet testing including: - Dual port 10/100/1000 Base-T Electrical Interface - Dual port 1000 Base-X optical interface - Supports EtherSAM, RFC-2544,Traffic Generation, BERT, Smart Loopback, 3rd party loopback, Ping, Trace Route and Intelligent auto discovery Upgrades note(s): 1- Upgradeable to 100M Optical interface Order using the following part. no. 100optical 2- Upgradeable to Fibre Channel 1,2 or 4X Note: Rates enabled by default in this model are listed explicitly in the description. Additional rates can be enabled as well with additional options. |
Ethernet Test Module FTB-860G NetBlazer Gigabit and 10 GigE:
| FTB-860G-1 |
10/100/1000 Electrical & 1000 Optical Ethernet Test Module Ethernet testing including: - Dual port 10/100/1000 Base-T Electrical Interface - Dual port 1000 Base-X optical interface - Supports EtherSAM, RFC-2544,Traffic Generation, BERT, Smart Loopback, 3rd party loopback, Ping, Trace Route and Intelligent auto discovery Upgrades note(s): 1- Upgradeable to 10 GigE optical LAN/WAN testing Order using the following part. no. 10 GigE 2- Upgradeable to 100M Optical interface Order using the following part. no. 100optical 3- Upgradeable to Fibre Channel 1,2,4,8,10X 4- Other software options can also be ordered at a later time for upgrade. Note: Rates enabled by default in this model are listed explicitly in the description. Additional rates can be enabled as well with additional options. |
| Includes : | - Rechargeable battery & AC adapter/charger |
| - Hand strap | |
| - Certificate of Compliance | |
| - Test report | |
| - Instruction Manual (Electronic version -PDF on CD) | |
| - Quick refence guide |
Our main products as below:
1. FUSION SPLICER: USA Comway C10; Sumitomo (Type-81C); Fujikura (FSM-80S/70S/70R); Fitel S178A.
2.OTDR: EXFO (FTB-1/AXS-110/AXS-100/ FTB-200/FTB-500); JDSU (MTS-2000/4000/6000/8000); YOKOGAWA (AQ1200/AQ7275)
3. POWER METER (PPM-350C, FPM-300); LIGHT SOURCE (FLS-300); VFL (FLS-241); Multi Loss tester (FOT-930, FOT-302)
4. Anritsu site master S331D, S331L, S331E, S332E.
5. Fiber cleaver (CT-30A/CT-30/CT-05/FC-6S), adapter, battery, electrode, connector, fiber tool kits
6. Fiber cable, patch cord, adapter, closure, pigtail, optical switch, patch panel, etc..
7.Maintainance and repair, calibration service for the EXFO, JDSU, Sumitomo, Fujikura, Anritsu
