Sunbright Power Co., Ltd.
China Manufacturer with main products: Lead Acid Battery, Solar Battery, UPS Battery, E-bike Battery, Light Battery, Emergency Light Battery |

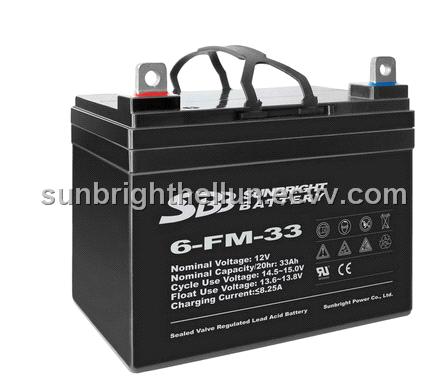

12V33AH / High Power for Generator
| Supply Ability: | 100,000 Piece/Pieces per Month |
|---|---|
| Shipping: | By sea |
| Payment Terms: | L/C |
-
ECVV Safebuy Services
According to the requirements of buyers, ECVV.com will purchase the cost-effective Chinese products for you from the well-chosen suppliers database which was accumulated in the past 10 years.Learn More>>
-
Safebuy Service Guarantee
Provide financial security for multinational purchaser; Determine delivery time and acceptance product according to the purchasing requirements; Arrange Chinese export declarations and international logistics; Provide unified delivery of products from different suppliers.
Related products from verified members
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Zhejiang in China |
| Packaging Details: | Export Carton |
Specifications
| We are an ISO9001, ISO14001 certified organization. And the products are approved by CE & UL. Nominal voltages of this series are 6V and 12V. And the capacity ranges from 1.2Ah to 200Ah. Their typical applications include: emergency lighting systems, portable instruments, small UPS, safety & alarm systems, electric tools and toys, etc. | |||||||||||
| Specification |
|
||||||||||
| Nominal Voltage | 12V | ||||||||||
| Capacity(10HR,25℃) | 33Ah | ||||||||||
| Designed Life | 3-5Years | ||||||||||
| Dimension | Length | 195mm | |||||||||
| Width | 130mm | ||||||||||
| Height | 155mm | ||||||||||
| Total Height | 180mm | ||||||||||
| Reference Weight | 10.5kg | ||||||||||
| Charateristics | Bitmap | ||||||||||
| Capacity 25℃ (77℉) To 1.70V/Cell | 20 hr rate | 34Ah | |||||||||
| 10 hr rate | 33Ah | ||||||||||
| 5 hr rate | 31.4Ah | ||||||||||
| 1 hr rate | 28Ah | ||||||||||
| Inner Resistance(fully charged 25℃) | 10mΩ | ||||||||||
| Self-discharge (at 25℃.) : | 3％ of the capacity per month | ||||||||||
| Discharge Temperature | -20～60℃ | ||||||||||
| Charge Temperature | -10～60℃ | Bitmap | |||||||||
| Storage Temperature | -20～60℃ | ||||||||||
| Cyclic use (at 25℃) | 14.4～14.9V | ||||||||||
| Initial current (at 25℃) | 9.9A | ||||||||||
| Temperature Compensation | -30mV/℃ | ||||||||||
| Float Use (at 25℃) | 13.6-13.8V | ||||||||||
| Temperature Compensation (at 25℃) | -20mV/℃ | ||||||||||
| Constant-current discharge parameter Unit: A(25℃) | |||||||||||
| End Point Vol./Cell | 5MIN | 10MIN | 15MIN | 30MIN | 1H | 3H | 5H | 10H | 20H | ||
| 1.60V | 120.8 | 81.8 | 60.3 | 36.6 | 19.8 | 8.99 | 6.24 | 3.22 | 1.67 | ||
| 1.65V | 111.3 | 78.8 | 58.2 | 35.9 | 19.4 | 8.88 | 6.19 | 3.19 | 1.66 | ||
| 1.70V | 104 | 74.5 | 53.4 | 32.9 | 19 | 8.37 | 6.09 | 3.16 | 1.65 | ||
| 1.75V | 92.2 | 70.4 | 51 | 32.5 | 18.7 | 8.17 | 5.61 | 3.14 | 1.65 | ||
| 1.80V | 83.5 | 61.2 | 48.5 | 31.6 | 18.4 | 8.1 | 5.45 | 3.13 | 1.64 | ||
| Constant-current discharge parameter Unit: W(25℃) | |||||||||||
| End Point Vol./Cell | 5MIN | 10MIN | 15MIN | 30MIN | 45MIN | 1H | 2H | 3H | 5H | ||
| 1.60V | 213 | 149 | 112 | 72 | 53.3 | 40.5 | 23.1 | 17.2 | 12.1 | ||
| 1.65V | 205 | 144 | 109 | 69 | 52.7 | 40.1 | 22.9 | 17.1 | 11.8 | ||
| 1.70V | 183 | 135 | 106 | 64 | 50.7 | 39.5 | 22.4 | 16.6 | 11.4 | ||
| 1.75V | 168 | 131 | 102 | 62 | 48.6 | 38.7 | 21.6 | 15.8 | 11.2 | ||
| 1.80V | 153 | 115 | 97 | 60 | 48.3 | 37.9 | 20.8 | 15 | 10.9 | ||
