Yuhuan Fangbo Machinery Co., Ltd.
China Manufacturer with main products: Small Hydropress, Single Column Hydropress, multi-function hydraulic press, Pneumatic Press Machine, Pneumatic Booster Machine, Hytraulic... |
Related products from verified members
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|
Specifications

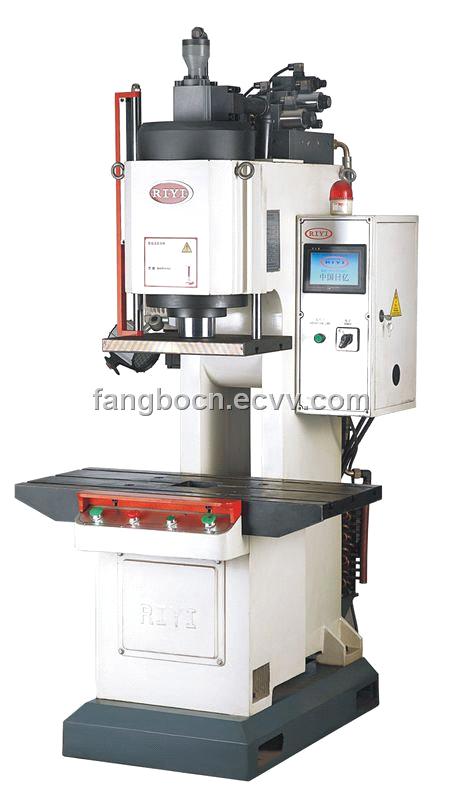

Product feature
1.The C-body design, whole body cast, high rigid.
2. With a filling valve, have a high speed.
3. Key and Foot Switch two cycle start modes.
4. With PLC control, easy programming process, positioning accuracy and high precision.
5. Safety designed, using both hands to operate, with emergency stop button and jog up and down function.
6. Widely used in parts of the press forming, stretching, bending, punching, stamping, shaft alignment and press-fit etc.
7. Infrared protection can be configured (Optional).
1.The C-body design, whole body cast, high rigid.
2. With a filling valve, have a high speed.
3. Key and Foot Switch two cycle start modes.
4. With PLC control, easy programming process, positioning accuracy and high precision.
5. Safety designed, using both hands to operate, with emergency stop button and jog up and down function.
6. Widely used in parts of the press forming, stretching, bending, punching, stamping, shaft alignment and press-fit etc.
7. Infrared protection can be configured (Optional).
Technical Parameters
Theoretical output pressure 350KN(35t)
Theoretical output pressure 350KN(35t)
Rated oil pressure 17.5Mpa
Max stroke 270mm
Max Opening Height 550mm
Thoat depth 280mm
Fast-forward speed 180mm/s
Feeding speed 35mm/s
Return speed 120mm/s
The size of the working table 600 X 540mm
The height of the working table 720(770)mm
Size of the mold mounting hole Φ40mm
Power of motor 5.5kw
Power(3ΦAC,50Hz)380V
Weight 2100kg
If you have found a particular product on this website you would like to purchase or you would just simply like to purchase or you would just simply like some more information about the item,then please contact me anyways on line or off line.I will be more than happy to assist you.
If you have a particular item in mind and you have not seen it on this website then please give us a call or email, We have a large rang of every kinds of press machine to choose from. It is very likely that we will have just what you are looking for.
Please browse our own website or visit our fully stocked showroom for more information and feel free to call us about any press machine.
No matter what your needs we endeavour to supply the quality goods and services to our custmoers at all times.
