Yuhuan Fangbo Machinery Co., Ltd.
China Manufacturer with main products: Small Hydropress, Single Column Hydropress, multi-function hydraulic press, Pneumatic Press Machine, Pneumatic Booster Machine, Hytraulic... |
Related products from verified members
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|
Specifications
Product feature:

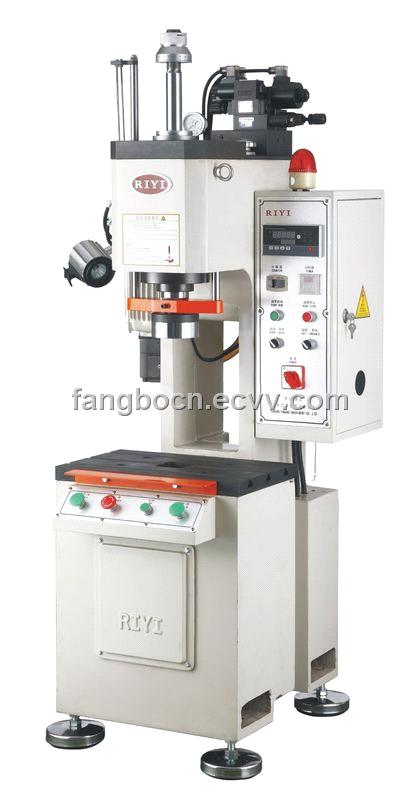

1.The C-body design, whole body casting,rigid and stable.
2. Rod mechanical limit, under pressure adjustable stroke, positioning accuracy 0.02mm.
3. Pressure head equipped with a pressure sensor, the value of pressure can be displayed.
4. Key and Foot Switch two cycle start modes. Pressure Speed and time can be adjusted.
5. Safety designed, using both hands to operate, with emergency stop button and jog up and down function.
6. Downward movement with the fast and feeding speed,the fast forward improve work efficiency,feeding speeds can be adjusted to protect the mold and improve product quality.
7.Widely used in parts of the press forming, stretching, bending, punching, stamping, shaft alignment and press-fit etc.
8.Infrared protection can be configured (Optional).
Technical Parameters
Theoretical output pressure 63KN(6.3t)
Rated oil pressure 12Mpa
Max stroke 150mm
Max Opening Height 230mm
Thoat depth 160mm
Fast-forward speed 120mm/s
Feeding speed 10~80mm/s
Return speed 100mm/s
The size of the working table 520 X 310mm
The height of the working table 640mm
Size of the mold mounting hole Φ22mm
Power of motor 2.2kw
Power(3ΦAC,50Hz)380V
Weight 670kg
They can be customized as per the specific needs of the customers.
