Shanghai Sunny Technology Co., Ltd.
China Manufacturer with main products: Flat Knitting Machine, Computer Flat Knitting Machine, Computerized Flat Knitting Machine, Knitting Machine |
Related products from verified members
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Shanghai in China |
| Packaging Details: | standard export plywood packaging carton |
Specifications

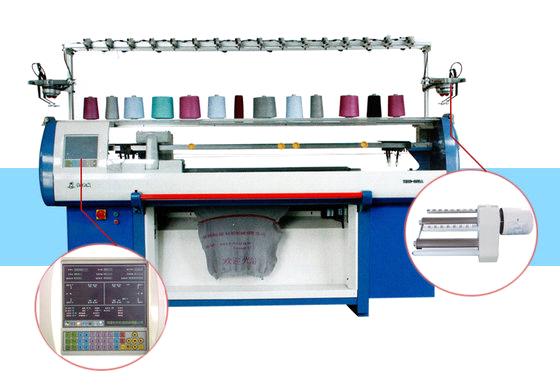

Type: SN-232A
Gauge: 7G 12G 14g(7G 5g 3.5g)
Knitting width: variable, max: 132cm(52")
Needlebar: single needle and inserted flake assembled needlebar, the advantage is that the inserted flake can be changed when broken.
Machine head: single head double systems
Yarn carrier: 4 shuttle box guide bars, 2×8 groups yarn carrier, p lating yarn and intarsia yarn carriers are optional.
Stitch density: 255 levels are available with slight adjustment om 0-99.
Racking: free location controlled by servo-motor in 2 inch.
Needle-sending device: front and back needle pate jacquard weave,controlled by computer and run by 8 levels of electromagnet.
Sinker: adjustable sinker body, controlled by computer and run by stepper motor.
Cam system: with 3-function knitting system, 3 knitting ways("knitting","tucking","missing") can be simultaneous, under the condition that machine head's direction is not limited,functions of "front to back","back to frony"as well as "front and back".
Main dreive: machine head is driven by AC servo motor, and knitting width is adjustable.
Yarn-supply system: installed 16 tension antennas with the fountions of big knot machine stop and small knot low speed, equiped 4 flat knitting intermittent yarn storage an feeding machine.
Knitting speed: 255 levels speed, max 1.2m/sec.,are available for different needle distances and knitting conditions.
Variable stitch density: computer program allows stitch adjustment at the same weaving row.
Cloth rolling device: mainly apply high-location dermatotome drawing, 255 levels towing forces, slight adjustment on 0-99, automatic openning and closing,equipped with drum-type vice-roller traction.
Auto-stop device: stop automatically with sound and light signal when yarn breaking, splicing,cropping,fabric releasing,needle breaking, over current, roll back,wrong racking, improper sinker, needle collision, excessive yarn, p iece count, etc.
Variable needle distance: different e\weaving needle distances are avaiable on the same needlebar, no need to change the cam when change the big pinhook and samll one.
Operation indicator lights: green is normal, yellow is standby, red is unnormal.
Pack size: length×width×hight 3m×1.1m×2.1m.
Knitting width: variable, max: 132cm(52")
Needlebar: single needle and inserted flake assembled needlebar, the advantage is that the inserted flake can be changed when broken.
Machine head: single head double systems
Yarn carrier: 4 shuttle box guide bars, 2×8 groups yarn carrier, p lating yarn and intarsia yarn carriers are optional.
Stitch density: 255 levels are available with slight adjustment om 0-99.
Racking: free location controlled by servo-motor in 2 inch.
Needle-sending device: front and back needle pate jacquard weave,controlled by computer and run by 8 levels of electromagnet.
Sinker: adjustable sinker body, controlled by computer and run by stepper motor.
Cam system: with 3-function knitting system, 3 knitting ways("knitting","tucking","missing") can be simultaneous, under the condition that machine head's direction is not limited,functions of "front to back","back to frony"as well as "front and back".
Main dreive: machine head is driven by AC servo motor, and knitting width is adjustable.
Yarn-supply system: installed 16 tension antennas with the fountions of big knot machine stop and small knot low speed, equiped 4 flat knitting intermittent yarn storage an feeding machine.
Knitting speed: 255 levels speed, max 1.2m/sec.,are available for different needle distances and knitting conditions.
Variable stitch density: computer program allows stitch adjustment at the same weaving row.
Cloth rolling device: mainly apply high-location dermatotome drawing, 255 levels towing forces, slight adjustment on 0-99, automatic openning and closing,equipped with drum-type vice-roller traction.
Auto-stop device: stop automatically with sound and light signal when yarn breaking, splicing,cropping,fabric releasing,needle breaking, over current, roll back,wrong racking, improper sinker, needle collision, excessive yarn, p iece count, etc.
Variable needle distance: different e\weaving needle distances are avaiable on the same needlebar, no need to change the cam when change the big pinhook and samll one.
Operation indicator lights: green is normal, yellow is standby, red is unnormal.
Pack size: length×width×hight 3m×1.1m×2.1m.
Weight: 1200kg
Data access: USB flash disk.
Pattern: 1024 needles×8192 rows.
Memory: 2G.
Screen display: 10.4 inch LCD touch.
Power: AC triphase 220V 50/60HZ power consumption 1.8KVA.
