Product Details

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe

Specifications

Production processing

Decoiler---flatting---feeding & punchine---forming---cut-to-length---collection table.

Equipment struction introduction.

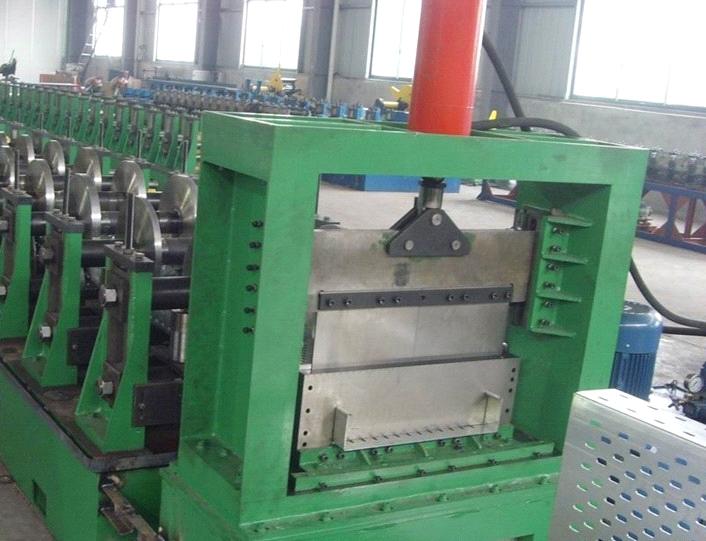

This production line may produce the cable tray, the different sizes through the replace punching moulds to complete. Forming machine is combined and adjustable, one set of combined rollers complete all cable tray products, the change size through adjust distance of rollers to complete.

Equipment capacity

1, The production line can produce many sizes of cable tray according to producing requirement.(material steel width 100mm≤§≤860mm)

2, Line speed:2.5-5M/min

3, Continuous forming speed:10-15M/min

4, Steel thickness:1-2.5mm

5 , Material : Mild steel , galvanized steel coil

6, The production line divide into two operations: automatic &handle. It can work with linkage and subsection.

Equipment structure

The whole equipment consists of decoiler, ML-900 flatting device, servo feeding, JF21-200B punching, punching dies, guider, forming machine, cut-to-length device, collection table and electrical control.etc
