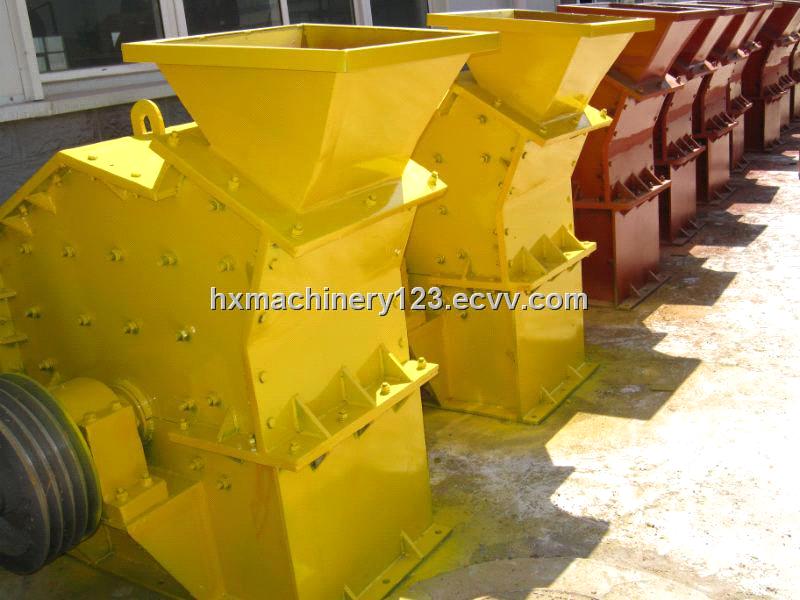

High Efficiency Fine Impact Crusher of Model PFX 1000x1000

FOB Price:	1,000.00 - 1,000,000.00 USD/Set
Supply Ability:	30 Set/Sets per Month
Shipping:	30days
Payment Terms:	L/C, T/T, Western Union, Or Others

In Stock

Inquiry Now

Related products from verified members

Product Details

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin:	Henan in China
Packaging Details:	in bulks or containers

Specifications

High efficient fine impact crusher is the latest development based on the digestion and absorption of advanced technologies at home and abroad,which combined with domestic industry specific working conditions .It is uesd for a variety of medium hardness of solid materials in the cement industry, Limestone, gypsum, clinker, mixed material ,etc.and also crush the calcium phosphate ,dolomite, perlite mine. It can be widely used in building materials, refractory materials, mining and other industrial segment.

High-efficient fine impact crusher features:

1. Easy access for maintenance

2.This kind of crusher also called new type of sand making machine, it use the hammer and screen bars to adjust the discharging size.And user can adjust the screen gap easily and freely.

3. The hammer is high chromium alloy material so as to ensure the abrasive property and impact-resisting property of hammers and liner plates.

4.It is stable operation,low dust and less powder consumption.

5.85% of the discharged materials less than 3mm

High-efficient impact crusher technical specification:

Model	Feeding size(mm)	Discharging size(mm)	Capacity(t/h)	Power(kw)	Weight(t)
PCX800×400	≤60	≤5(96%)	20-25	37	2.5
PCX800×600	≤60	≤5(94%)	35-50	45	4.7
PCX800×800	≤70	≤5(92%)	40-60	75	6.5
PCX1000×1000	≤80	≤5(91%)	60-90	90	8.8
PCX1000×1200	≤90	≤5(88%)	75-110	110	13.6
PCX1200×1200	≤100	≤5(86%)	120-145	160	19.5
PCX1300×1400	≤120	≤5(85%)	145-180	180	26
