Specifications

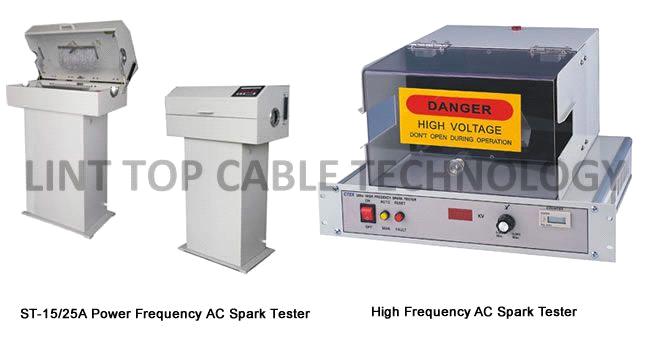

Power Frequency AC Spark Tester
1. Features of Power Frequency AC Spark Tester
ST-15/25A Commercial Frequency AC Spark Tester is a special-purpose test apparatus to detect fault of insulation on wire and cable.Integrated with the technology of solid-state AC voltage regulation and single piece microprocessor control,the machine features steady voltage output(unaffected by variation of supply voltage),high sensitivity of fault detection,versatility,user-friendliness,safety and reliability,new construction and beautiful appearance.
2. Technical parameters of Power Frequency AC Spark Tester
|
Type
|
ST-15A
|
ST-25A
|
|
Voltage output
|
1.0-15.0KV
|
2.0-25.0KV
|
|
Voltage indication error
|
＜5％
|
＜5％
|
|
Detection sensitivity
|
＜600μA
|
＜600μA
|
|
Stability
|
Complying with the requirements of GB3048.9-1994 and B/T4728.10
|
|
|
Detection resolution
|
0.05s
|
0.05s
|
|
Transient breakdown current
|
100mA
|
50mA
|
|
Steady short-circuit current
|
＜20mA
|
＜20mA
|
|
Detection speed,Max.
|
300m/min
|
350m/min
|
|
Overall diameter of tested wire or cable,Max.
|
≤30mm
|
≤55mm
|
Note:We also have wire sparkers- voltage: 3-35KV, Max. diameters: 160mm, for detailed information, please contact us.
High Frequency AC Spark Test
High Frequency AC Spark Test
|
Model
|
HS015E
|
HS015B(F)
|
|
Input voltage
|
220,Single phase,60HZ
|
|
|
Output voltage
|
0-15.0KV,R.M.S.
|
|
|
Test voltage
|
Max. 4KV
|
Max. 8KV
|
|
Max. Cable diameter to be test
|
0-4mm
|
0-10mm
|
|
Max. Linning speed
|
2000m/min
|
1000m/min
|
|
Output frequency
|
3000Hz±5
|
|
|
Electrode length
|
Bead chain length:120mm
|
Bead chain length:50mm
|
|
Single chain length
|
60mm
|
90mm
|
|
Single cable length
|
5m
|
|
|
Bead diameter
|
2.4mm
|
2.4mm
|
|
Fault indication
|
Indicating lamp,counting by 4-digital counter
|
|
|
Power source
|
AC100-240V,single phase,50/60Hz
|
|
|
Operating temperature
|
+4-45℃
|
|
|
Weight
|
Control unit=5kgs,electrode=8.5kgs
|
|
|
Dimension
|
Controller:485×360×90mm,gouge head:330×390×200mm
|
|
