Specifications

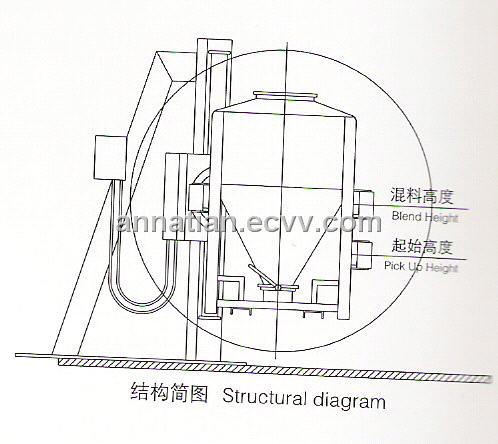

HLT HOPPER LIFTING TYPE MIXER
Introduction:
The HLT hopper lifting type mixer is extensively used for the mixing of powder with powder or powder with grain in the process of diversified solid preparation production in the pharmaceutical industry. This mixer can be equipped with hoppers of various specification, i. e. 600L to 1400L. It is suitable for mixing pharmaceuticals of multiple varieties and different batches according to the technological requirements in large and medium-sized pharmaceutical enterprises, so it can achieve multiple purposes in one machine.
Working principle After the charged hopper is tightly clamped by a rotating arm, it is lifted to a certain position, and the arm begins to rotate at a speed below 50% of the critical speed according to the preset technological parameters. As the symmetrical axes of hopper and the rotating center line of rotating arm form an included angle, materials with different constituents are strenuously rolling over in the closed hopper and producing high shear to achieve the best effect of mixing.Features
1. It is a high-tech product which integrates machinery, electronics and hydraulics into one body. It employs hydraulic clamping, lifting and driving, and computer control, and is easy to operate and convenient to adjust technological parameters.
2. The control system is highly sensitive, and the whole machine is compact in structure, stable and reliable in running.
3. A single machine can be equipped with hoppers of various specifications such as 600L, 800L, 1000L, 1200L and 1400L. The materials after mixing remains in the hopper, which will be dismounted from the rotating arm and shifted directly to the next procedure, thus greatly improving the utilization efficiency of the mixer and also avoiding cross contamination of materials.
2. The control system is highly sensitive, and the whole machine is compact in structure, stable and reliable in running.
3. A single machine can be equipped with hoppers of various specifications such as 600L, 800L, 1000L, 1200L and 1400L. The materials after mixing remains in the hopper, which will be dismounted from the rotating arm and shifted directly to the next procedure, thus greatly improving the utilization efficiency of the mixer and also avoiding cross contamination of materials.
