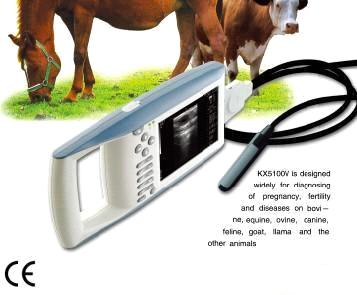

KX5100 vet palm ultrasound scanner (veterinary, human )

Inquiry Now

Related products from verified members

Product Details

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin:	Jiangsu in China

Specifications

Veterinary software and probe /human software and probe

B, B/B, B/B/B/B, M, B/M 5 kinds of display mode
Palm ultrasound scanner
256 frames cine loops
Internal Battery
With 2 USB ports
Image storage
OB report
Digital

Vet Application: pregnancy, fertility and diseases on bovine, equine, ovine, swine, canine, feline, goat, llama.

Main Specification
1. Grey scale: 256
2. 6.4'crystal screen
3. Power supply: AC100V~240V Frequency: 50Hz~60Hz
4. Power consume: ≤ 40VA
5. Main unit size: 326*162*47mm
6. Main unit weight: 1.5kg approximately
Main function
1. Display mode: B, B/B, B/M, M, 4B
2. M speed: 1s, 2s, 3s, 4s, 5s, 6s, 7s, 8s
3. Magnification: 0.8, 1.0, 1.2, 1.5, 1.7, 2.0, 2.4, 3.0
4. Depth hoist/ Pan the lens
5. Local zooming
6. Adjustment and displaying of the near field, far field, total gain and dynamic range
7. Single point, multi-point dynamic focusing
8. Frequncy conversion
9. Angles conversion
10. Frange correlation
11. Image post processing, gamma correction and edge enhancement
12. Image freeze, unfreeze
13. Up/ down, left/right, black/white reverse
14. 8 kinds of pseudo color display
15. Patient information, image note and automatic time display
16. Body marks with probe marks: 64 kinds
17. Calculations of distance, perimeter, area, volume, heart rate, slope rate, cycle
18. 10 kinds of obstetric table, automatic calculations of expected date of childbirth and fetus weight
19. Puncture guide line
20. Energy Saving
21. 120 frames Image storage( hard-disk)
22. 256 frames Cine loop
23. Chinese and English alternation
24. Obstetric report;
25. PAL and NTSC alternation
26. USB flash disk storage & image transfer to PC
Veterinary software optional
256 frames cine loops
Battery
OB report
64 kinds body marks
