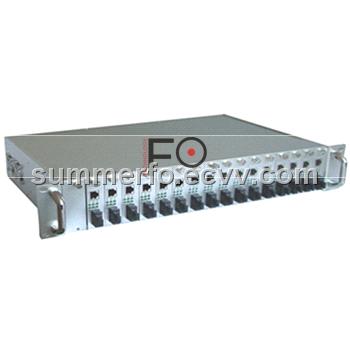

SNMP Managed Media converter

Specifications

      The SDB-M1100 is designed to make conversion between 10/100Base-TX to 100Base-FX Fast Ethernet. With SNMP agent, web-based management and Telnet text-based menu driven management, the network administrator can logon the converter to monitor, configure and control the activity of each port. It support LFP(Link Fault Pass-through) function, The Link Pass Through function is a combination of two mechanisms: Link Loss Carry Forward (LLCF) and Link Loss Return (LLR).. In addition, the converter implements bandwidth rating management capability via the intelligent software. The overall network management is enhanced, and the network efficiency is also improved to accommodate and deliver high bandwidth applications.


Features:
-- Supports each converter module media configured and monitored ability:
-- Optional: LFP(LLCF and LLR) function
-- Supports port state enabled/disabled
-- Supports auto-negotiation/forced mode
-- Supports port speed and duplex mode
-- Supports wire speed packet forwarding ability as below:
10Base-T : 14880 pps
100Base-TX: 148800 pps
-- Supports module per port basic counters for traffic raw data monitor of fiber and TP port as below:
-- Supports RMON counters for port traffic quality monitoring function
-- Supports bandwidth rating per port ingress and egress rate limit 100Mbps with 1Mbps granulari
-- Supports max packet length: 1916 bytes
-- Supports 802.3x flow control for full-duplex ports and backpressure for half-duplex ports
-- Supports comprehensive types of fiber with different distances and connections, including SC/ST/Bidi/LC and so on
-- ports one 10/100Base-T Fast Ethernet UTP port and one 100Base-FX Fast Ethernet Fiber port
-- Supports Q-in-Q double tagged frame transparent
-- Supports firmware upgrade by TFTP
-- Supports converter mode (only block Pause frame 01-80-c2-00-00-01 and ■supported L2 protocol)
-- Supports Module Information (S/N, MAC, Model Name)
-- Supports per port basic LEDs for monitorin
-- Supports media type, connector, wavelength and distance information
-- Supports hot-swap and auto reload configuration ability
-- Supports IEEE 802.1p Priority
-- Supports IEEE 802.1q Tag VLAN
-- Supports QoS Classification based on TOS
-- Supports intelligent diagnostic for self detection
-- Supports external loop back capability
-- Supports web-based and text-based management user interface
-- Supports SMTP
-- Supports DHCP client
-- Supports E-mail client (SMTP RFC 821) and Mobile Phone short message (SMS) for sending Traps and Alam message
-- Supports Dying Gasp function
-- RoHS Compliance
