Specifications

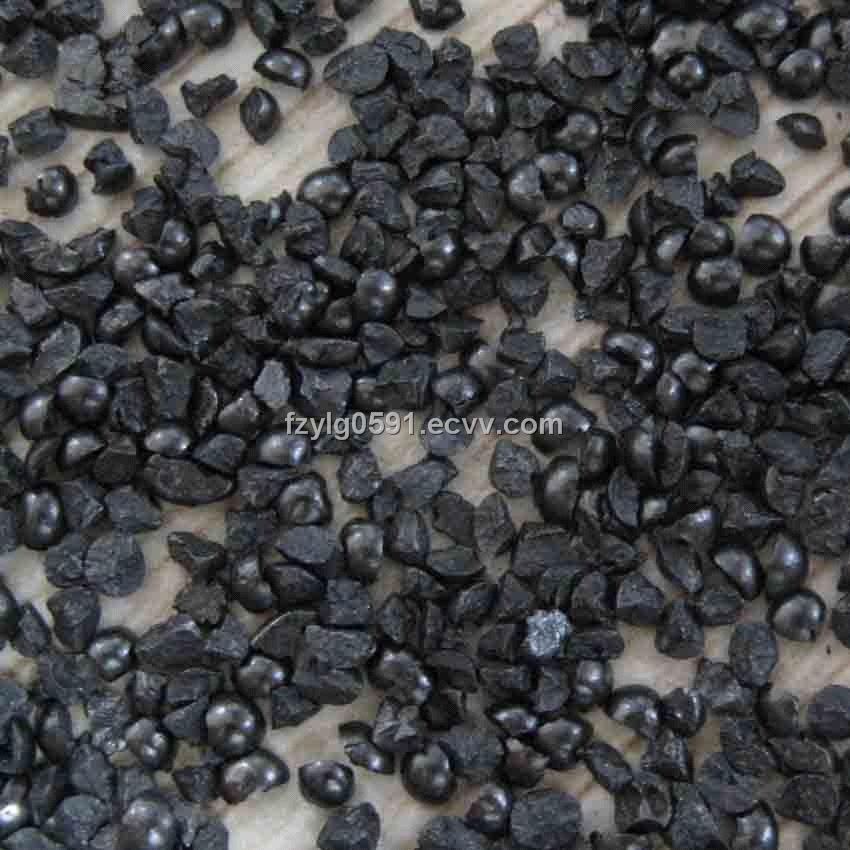

Cast steel grit is used for blast cleaning of shot blasting machine, steel pre-treatment, steel structure.
Application
|
Blast cleaning
|
Used for blast cleaning of casting, die-casting, forging, sand removal of casting, steel plate, H type steel, steel structure.
|
|
Rust removal
|
Rust removal of casting, forging, steel plate, H type steel, steel structure, descaling of forging
|
|
Shot blasting
|
Shot blasting of profile steel, ship board, steel board, steel material.
|
|
Shot blasting
|
Shot blasting of steel board, profile steel, steel structure.
|
|
Pre-treatment
|
Pre-treatment of surface, steel board, profile steel, steel structure, before-painting.
|
In accordance with standards of SFSA20-66 Cast Steel Abrasive, SAE J827Cast Steel Shot, SAE J1993High Carbon Steel Grit, YB/T5149-1993Cast Steel Shot, YB/T5150-1993Cast Steel Grit,ISO11124-3High Carbon Cast Steel Shot and Grit.
Main Tech Specifications of Cast Steel Shot
|
Index
|
Cast steel grit
|
|
|
Chemical Compostions
|
C
|
0.70~1.20%
|
|
Mn
|
0.60~1.20%
|
|
|
Si
|
0.40~1.20%
|
|
|
S
|
0.05% max
|
|
|
P
|
0.05% max
|
|
|
Average hardness
(500g loading)
|
GP42~50HRC (399~509HV)
GL56~60HRC (620~713HV)
GH63~66HRC (795~889HV)
|
|
|
Hardness deviation
|
Max deviation±3.0HRC,±40HV
|
|
|
Metallography structure
|
Even tempered martensite and dispersed carbon
|
|
|
Min density
(Alcohol replace testing)
|
7.4g/cm3
|
|
GP:Angular when new, this grit rapidly rounds off in use and its particularly suited descaling applications.
GL:Although harder then GP steel grit, also loses its sharp edges during shto basting and is particularly suited to descaling and surface preparation applications.
GH:Having maximum hardness, GH always remains angular in its operating mix. These abrasive are particularly effective in surface treatment processes and produce a uniform, etched finish, GH angular grit should only be used in wheel machines where working requirements take precedence over cost price considerations (for example with rolling mill cylinders or when a special finish is needed). For use mainly with compressed air equipment.
Cast steel grit distribution
|
mesh
|
mm
|
Cast steel grit Size
|
|||||||||
|
|
|
2.5
|
2.0
|
1.7
|
1.4
|
1.2
|
1.0
|
0.7
|
0.4
|
0.3
|
0.2
|
|
7
|
2.80
|
all pass
|
|
|
|
|
|
|
|
|
|
|
8
|
2.36
|
|
all pass
|
|
|
|
|
|
|
|
|
|
10
|
2.00
|
80%min
|
|
all pass
|
|
|
|
|
|
|
|
|
12
|
1.70
|
90%min
|
80% min
|
|
all pass
|
|
|
|
|
|
|
|
14
|
1.40
|
|
90% min
|
80%min
|
|
all pass
|
|
|
|
|
|
|
16
|
1.18
|
|
|
90%min
|
75% min
|
|
all pass
|
|
|
|
|
|
18
|
1.00
|
|
|
|
85% min
|
75% min
|
|
all pass
|
|
|
|
|
20
|
0.850
|
|
|
|
|
|
|
|
|
|
|
|
25
|
0.710
|
|
|
|
|
85% min
|
70% min
|
|
all pass
|
|
|
|
30
|
0.600
|
|
|
|
|
|
|
|
|
|
|
|
35
|
0.500
|
|
|
|
|
|
80% min
|
|
|
|
|
|
40
|
0.425
|
|
|
|
|
|
|
70% min
|
|
all pass
|
|
|
45
|
0.355
|
|
|
|
|
|
|
|
|
|
|
|
50
|
0.300
|
|
|
|
|
|
|
80% min
|
65%min
|
|
all pass
|
|
80
|
0.180
|
|
|
|
|
|
|
|
75%min
|
65% min
|
|
|
120
|
0.125
|
|
|
|
|
|
|
|
|
75% min
|
60% min
|
|
200
|
0.075
|
|
|
|
|
|
|
|
|
|
70% min
|
|
325
|
0.045
|
|
|
|
|
|
|
|
|
|
|
|
SAE
|
G-10
|
G-12
|
G-14
|
G-16
|
G-18
|
G-25
|
G-40
|
G-50
|
G-80
|
G-120
|
|
