Henan Zhongxin Environmental & Logistics Equipment Co., Ltd.
China Manufacturer with main products: Dust Collector, Surface Aerator, Belt Conveyor, Air Cushion Belt Conveyor |
Home
>Products Catalog > Inserted Flat Bag Dust Collector > ZXLME Insertable Flat Bag Type Dust Catchers

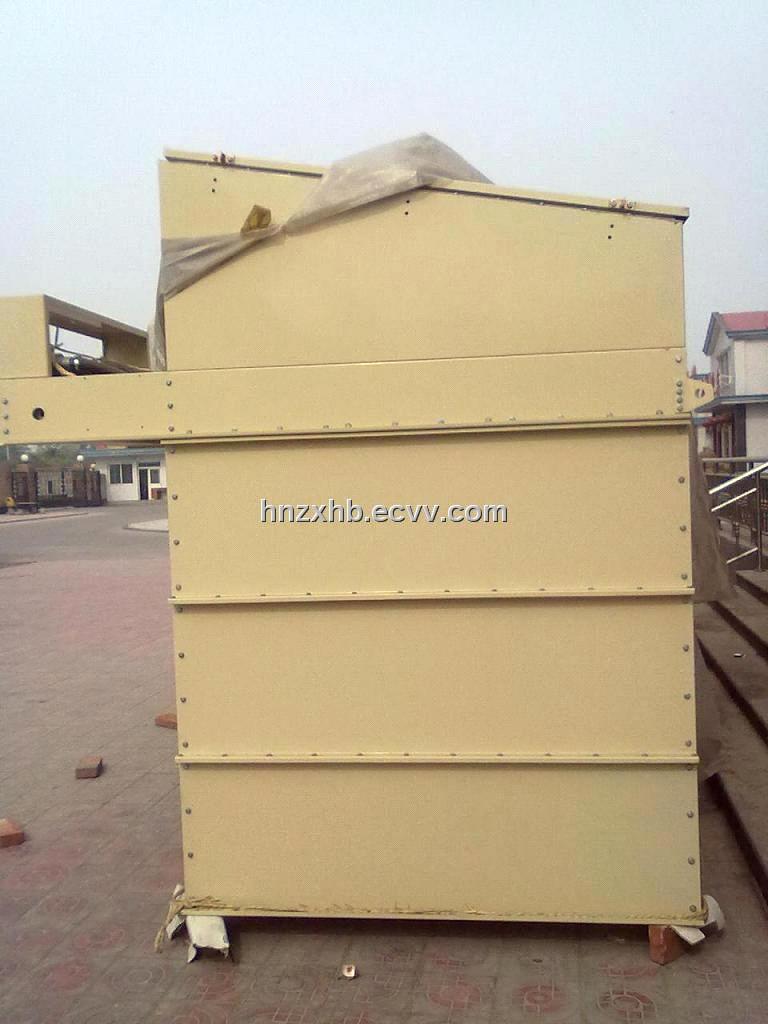

ZXLME Insertable Flat Bag Type Dust Catchers
| FOB Price: | 12,000.00 - 15,000.00 USD/Set |
|---|---|
| Supply Ability: | 12,000 Set/Sets per Year |
| Shipping: | 30 days after the contract |
| Payment Terms: | L/C, T/T |
Related products from verified members
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Henan in China |
| Packaging Details: | wooden box |
Specifications
Industrial Insertable bag dust collector/filter/cleaner
1.ZXLME plug-in dust collectors can intalled in any place,such as on cans,tanks and other storages.
2.Simply inserted directly into conveyoring system,grinder and mixer,its continuous operation can automatically remove the collected dsut or returs it to the process.
3.It is also suitable for exhaust and ventilation on the hoppers,storages and cans.
| the Structure Size of Insertable Dust Collector ZXLME(mm) | ||||||||||||
| Type | A | B | C | D | E | F | G | H | J | L | M | N |
| ZXLME6A | 700 | 1095 | 935 | 480 | 470 | 1550 | 310 | 295 | 195 | 1000 | 525 | 648 |
| ZXLME10A | 1100 | 1095 | 935 | 480 | 820 | 1550 | 310 | 295 | 195 | 1000 | 525 | 1000 |
| ZXLME15A | 1100 | 1095 | 935 | 480 | 820 | 2050 | 310 | 295 | 195 | 1500 | 1000 | |
| ZXLME20A | 1100 | 1625 | 935 935 935 | 1005 | 820 | 1550 | 575 | 310 | 130 130 180 | 1000 | 1050 | 1000 |
| ZXLME30A | 1100 | 1625 1625 1730 | 935 935 950 | 1005 | 820 | 2050 | 575 | 310 | 130 180 235 | 1500 | 1050 | 1000 |
| ZXLME45A | 1100 | 2225 2330 2365 | 1605 | 1605 | 820 | 1950 | 875 | 310 | 180 235 270 | 1500 | 1650 | 1000 |
| ZXLME60A | 1100 | 2890 | 2130 | 2130 | 820 | 2210 | 1135 | 310 | 1500 | 1500 | 2175 | 1000 |
|
Requirements of the equipment: Power: 220V/50HZ±10% Blower: 380 V/50HZ Compressed Air : No oil, no water, Pressure 4.5(par) |
||||||||||||
| Type | Number of bags | Length of filter bag(m) | Filter Area (m2) | Consumption of compressed air (m³/h) | Pressure of compressed air(bar) | Volume of treated dust air(m³/h) | Power(KW) | Weight(kg) |
| ZXLME6A | 6 | 1.0 | 6 | 2.4 | 3.8-4.5 | 600-800 | 1.5 | 244 |
| ZXLME10A | 10 | 1.0 | 10 | 4.0 | 3.8-4.5 | 900-1100 | 1.5 | 342 |
| ZXLME15A | 10 | 1.5 | 15 | 4.8 | 3.8-4.5 | 1300-1700 | 2.2 | 380 |
| ZXLME20A | 20 | 1.0 | 20 | 8.7 | 3.8-4.5 | 1800-2200 | 3 | 555 |
| ZXLME30A | 20 | 1.5 | 30 | 8.7 | 3.8-4.5 | 2700-3300 | 4 | 594 |
| ZXLME45A | 30 | 1.5 | 45 | 11.2 | 3.8-4.5 | 4000-3300 | 5.5 | 849 |
| ZXLME60A | 40 | 1.5 | 60 | 16.1 | 3.8-4.5 | 5400-7000 | 7.5 | 1206 |
|
1.Standard interval for pulse jet: 12s (Adjustable) 2.Pulse width: 110ms (Adjustable) 3.Required installation space 500mm 4.Inlet diameter of compressed air: D=1/2 inch |
||||||||
If you have any interests in doing business with us,pls feel free to contact me.
