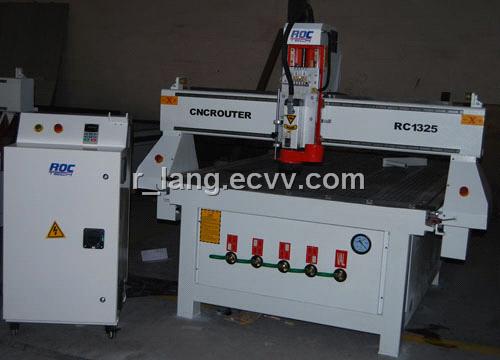

CNC Router RC1325
| FOB Price: | 8,230.00 - 10,000.00 USD/Set |
|---|---|
| Supply Ability: | 20 Set/Sets per Month |
| Shipping: | Sea |
| Payment Terms: | L/C, T/T, Western Union |
Related products from verified members
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Shandong in China |
| Packaging Details: | Packed in wooden case |
Specifications
CNC Router RC1325
With hard steel structure, the machine is fit for hard wood working, like cutting and engraving on rosewood for furniture, indoor decoration, and it is qualified for mass-producing of furniture with the vacuum holding way and dust collector.
We use top quality components for the machine, such as HSD spindle, Delta Inverter, Becker Vacuum pump, Hiwin linear and so on, to keep the machine in best condition even after working for many years.
We use top quality components for the machine, such as HSD spindle, Delta Inverter, Becker Vacuum pump, Hiwin linear and so on, to keep the machine in best condition even after working for many years.
1. The machine’s body is strong, high-precision, reliable and durable.
2. Imported high-precision ball screw, which moving smoothly, to ensure the machine’s high precision.
3. Well-known water cooling spindle, strong cutting ability, low noise, to ensure the machine working for long time.
4. High-performance drive motor to ensure the machine’s high speed and accuracy.
5. Perfect design, top quality accessories, to minimize the machine’s failure rate.
6. Breakpoint specific memory to keep the carving status when power off, processing time forecast and other functions in case of the accidental power outages.
Performance parameter
|
Number
|
Description
|
Parameter
|
|
1
|
X,Y,Z Working Area
|
1300x2500x200mm
|
|
2
|
Table Size
|
1360×2940mm
|
|
3
|
X,Y,Z Traveling Positioning Accuracy
|
±0.01/300mm
|
|
4
|
X,Y,Z Repositioning Accuracy
|
±0.01mm
|
|
5
|
Table Surface
|
Vacuum and T-slot Combined (Option: T-slot Table)
|
|
6
|
Frame
|
Welded Structure
|
|
7
|
X, Y Structure
|
Rack and Pinion Drive, Hiwin Rail Linear Bearings
|
|
8
|
Z Structure
|
Hiwin Rail Linear Bearings and Ball Screw
|
|
9
|
Max. Power Consumption
|
(Without Spindle) 2.0Kw
|
|
10
|
Max. Rapid Travel Rate
|
33000mm/min
|
|
11
|
Max. Working Speed
|
25000mm/min
|
|
12
|
Spindle Power
|
3.0/4.5/6/7KW
|
|
13
|
Spindle Speed
|
0-18000RPM
|
|
14
|
Drive Motors
|
Stepper System
|
|
15
|
Working Voltage
|
AC380V/50/60Hz,3PH (Option: 220V))
|
|
16
|
Command Language
|
G Code
|
|
17
|
Operating System
|
DSP System (Options: Ncstudio/Mach3 PC Software)
|
|
18
|
Computer Interface
|
USB
|
|
19
|
Flash Memory
|
128M(U Disk)
|
|
20
|
Collet
|
ER25
|
|
21
|
X,Y Resolution
|
<0.01mm
|
|
22
|
Software Compatibility
|
Type3/UcancameV9 Software, (Option: Artcam Software)
|
|
23
|
Running Environment Temperature
|
0 - 45 Centigrade
|
|
24
|
Relative Humidity
|
30% - 75%
|
|
25
|
Packing Size
|
3200X2100X1980mm
|
|
26
|
N.W.
|
1450KG
|
|
27
|
G.W.
|
1670KG
|
|
28
|
Optional Parts
|
Air Cooling Spindle or Water Cooling Spindle
|
|
Syntech Control System
|
||
|
Dust Collector
|
||
|
Vacuum Pump
|
||
|
Rotary System
|
||
|
Mist-cooling System
|
||
|
850W Yaskawa/800W Panasonic Servo Motors
|
Guarantee & After Sales Service
1. The machine is guaranteed for 12 months.
2. Technical support by phone, e-mail or MSN around the clock.
3. Friendly English version manual and operation video CD disk.
1. The machine is guaranteed for 12 months.
2. Technical support by phone, e-mail or MSN around the clock.
3. Friendly English version manual and operation video CD disk.
