VPSA Oxygen (O2) generator/plant

Payment Terms:	L/C, T/T

Inquiry Now

Related products from verified members

Industrial Mesh Welding Mchine JY2-1

Price:

Min. Order:1 Set
Automatic 850mm Slim Swing Barrier YAT6609N

Price:2,600.00-2,700.00 USD/Set

Min. Order:1 Set
Electroplating Muscle Equipment

Price:

Min. Order:

Product Details

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin:	Shanghai in China

Specifications

1) Runoff: 200 - 5000Nm3/h
2) Purity: 21 - 95%
3) Pressure: 5 – 20Kpa

4) Dew Point: in accordance with custormer’s demand

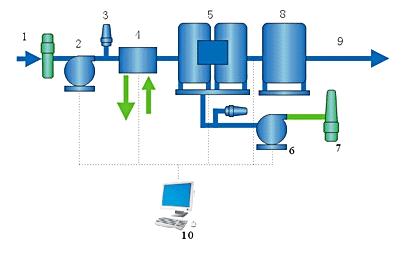

1.1Air Fan and Vacuum Pump

Air fan provide air source for the whole system. Based on VPSA oxygen generator design condition and customer requirements, fan with proper outlet air pressure is to be provided. Vacuum pump ensures correct system operation and keeps the system in ideal vacuum state, which ensures equipment constantly adsorb nitrogen and produce oxygen.

1.2Temperature Regulating System

Air temperature regulating system is made up of a water cooler and an electric heater. The temperature of air compressed by fan is around 65oC-70oC, passing the water cooler, its temperature is reduced to meet the requirements of process operation. Then it is sent into the adsorption towers. In winter, the temperature of air is to be increased by the electric heater and reaches the requirements of process operation.

1.3Adsorption System

The adsorption system mainly consists of two towers filled with zeolite molecular sieve adsorbents and piping valves etc. Air enters into the bottom of one tower, when passing through the adsorbent layer,N2, Coxygen, Vapor are adsorbed by molecular sieve and oxygen passes through the adsorbents and gathers at the top of tower, flowing out as produced gas, meanwhile the other tower is in the process of regeneration. When the adsorbing tower almost reaches saturation, by the operation of control system, the processing air flows into the regenerated tower and begins to produce oxygen.Two towers alternately adsorb and constantly produce oxygen .

1.4Oxygen Buffer Tank

Compared with three-tower process, oxygen generator with two towers can not produce consecutive oxygen, therefore, a buffer tank with large volume is needed for stable oxygen output.

1.5Control System

1.5.1 System process is achieved by DOS control system. In this system, valves switches are independently controlled by PLC (Programmable Logic Controller). Analog signals of test sensors communicate with the main control system through specific communication protocols. Relevant data of specific unit can be sent to main control system and remote control signals of main control system can be accepted by specific unit.

1.5.2 In order to ensure safe oxygen supply, functions of interlink, protection, alarm, print, record etc can be provided.

1.5.3 The output variation of oxygen supply can be adjusted by DCS control system. System operating parameters can be adjusted to save energy.

1.5.4 The main control system adopts industry computer, provided with specific software and convenient human-machine touching screen, Start/stop and operating parameter collection can be realized on control panel. Remote monitor and print of running status record can be easily achieved.

2.Technical Index

Oxygen production: 100~3000Nm3/h
Oxygen Purity: 50~95%
Outlet pressure: 0.015~0.05MPa (adjustable)

3. Features

3.1 Quick and convenient start and stop.
3.2 Low investment and energy consumption.
3.3 High automation.
3.4 Simple operation and maintenance.
3.5 Short installation period and small ground treatment workload.
