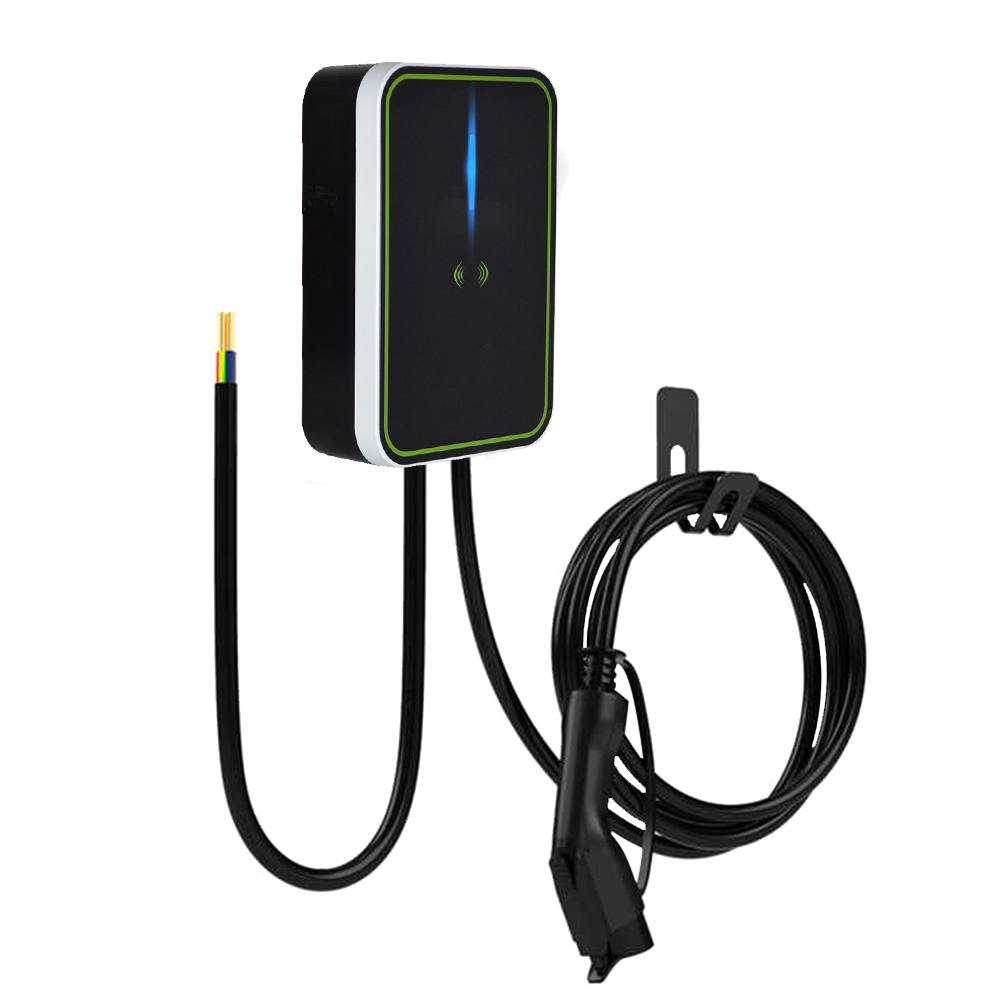

Wallbox Wall Mount Level 2 AC Ev Portable Charger Evse Home Electric Car Ev Wall Charger Box 7kw 11 22 Kw Typ 2 Type
Supply Ability: | 60,000 Piece(s) per Month |
---|---|
Payment Terms: | T/T, Western Union, MoneyGram |
Related products from verified members
Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
---|---|
Place of Origin: | Guangdong in China |
Packaging Details: | Qty per Carton:20pcs,Carton Weight:18.60kgs,Carton Size:58cm * 45cm * 40cm |
Quick Details
- Color: White
- Light Source: SMD LED
- Base Material: PC
- Brand Name: SHIERGE
- Certification: CE ROHS
Specifications
Input & output
Power rating:7KW(1phase)/11KW(3phase)/22KW(3phase)
Charging interface type:IEC 61851
Input & output voltage:AC220(1phase)/AC380V(3phase)
Output current:16A/32A
Frequency:45-65Hz
Function and accessory
WiFi/4G/OCPP1.6/LAN:optional
RFID(2 user cards):optional
RCD:Type A/type A+6mA DC
4.3 inch display:Optional
Home load balancing(DLB):Optional
Working environment
IP grade:IP65
Working temperature:-40- +65℃
Working altifude:≤2000m
Working humidity:5%-95% no condensation
Cooling mode:Natural cooling
MTBF:≥100000H
Special protection:UV resistance
Standby power:3W/5W(with LCD)
Mechnical
Dimension:(350H*240W*95D)mm
Cable length:5M(16.4FT) standard or other size customizable
Weight:8.0kg(including charging gun)
