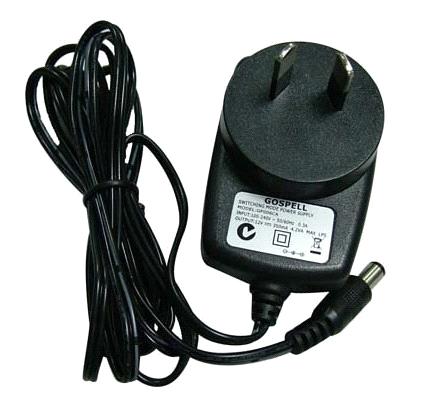

AC Power Adapter/AC Power Supply - Switching Power Supply

FOB Price:	5.00 USD/Piece
Supply Ability:	10,000 Piece/Pieces per Day
Shipping:	10-15 days leadtime after order confirmation, FCA Shenzhen or FOB HK
Payment Terms:	L/C, T/T, Paypal, Western Union, others

In Stock

Inquiry Now Start Safebuy Order

ECVV Safebuy Services

According to the requirements of buyers, ECVV.com will purchase the cost-effective Chinese products for you from the well-chosen suppliers database which was accumulated in the past 10 years.Learn More>>
Safebuy Service Guarantee

Provide financial security for multinational purchaser; Determine delivery time and acceptance product according to the purchasing requirements; Arrange Chinese export declarations and international logistics; Provide unified delivery of products from different suppliers.

Related products from verified members

HDMI- HDMI Male Adapter

Price:1.20-1.54 USD/Piece

Min. Order:500 Pieces
DC 40W Universal Laptop Adapter/Universal Adapt...

Price:

Min. Order:100 Pieces
Emulx 2GB fiber channel Host Bus Adapters

Price:

Min. Order:1 Piece
N-JKW Adaptor

Price:

Min. Order:200 Pieces

Product Details

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin:	Guangdong in China
Packaging Details:	Standard Export Package, cartons

Specifications

AC Power Adapter/AC Power Supply - Switching Power Supply
Specifications:

1) AC input voltage:100-240Vac,50-60Hz
2) Output Voltage & Current:6V---32V / 0.1A---4A
3) Protection:OCP OVP SCP OPP

Input Condition	AC100~240V 50/60 Hz 0.7A Max
Input Rated Voltage	100Vac~240Vac
Input Voltage Range	90Vac~264Vac
Input Rated Frequency	50/60Hz
Input Frequency Range	47Hz~63Hz
Input Current	0.7A Max
Input Inrush Current	40A Max
Input No Load Power Consumption	0.3W Max At 115Vac/230Vac
Efficiency	78% Min
Rated Output Voltage & Current	6V---32V / 0.1A---4A 24W MAX
Output Line Regulation	±1%
Output Load Regulation	±5%
Output Over Shoot	10% Max
Output Ripple And Noise	1% Max
Output Rising Time	20ms Max At 115Vac
Output Hold up Time	8ms Min At 230Vac
Protection	OCP OVP SCP OPP
Dielectric Withstand Voltage	3KV 5mA 60s
Leakage Current	0.25 mA At 230Vac
DC Plug Specification	optional
Dimension	81.8mmx43mm×32.7 mm
Operating Temperature Range	0°C~40°C
Storage Temperature Range	-20°C~+85°C

Feature:
1) Reliable, Environment friendly, no pollution
2) Best price and excellent service
3) Abundance of surplus capacity
4) 1 year warranty
5) UL, CE, FCC, RoHS, ISO9001
