VIBRATING SCREEN
| Supply Ability: | 500 Set/Sets per Year |
|---|---|
| Shipping: | SHANGHAI |
| Payment Terms: | L/C, T/T |
Related products from verified members
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Jiangsu in China |
Specifications

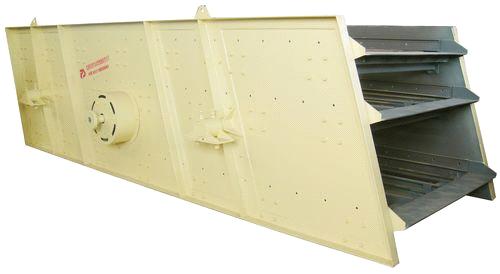

Our DYA series large circular vibrating screen is new invented multi-decks sieving equipment. It is particularly designed for the grading of dry materials in coal, mining, construction materials, water conservancy, and chemical industries.
The DYA series large circular vibrating screen is equipped with double eccentric shaft vibration exciters. Its two axles are connected by odontoid belts, so they can operate synchronously. The motion trail is a circle.
Our large circular vibrating screen features strong vibration strength, high screening efficiency, reliable performance, long service life and easy maintenance.
Technical Parameters of Large Circular Vibrating Screen
| Type | Screen size (mm) | Layer |
Instal lation slope |
Max feed size (mm) | Process capacity (m3/h) | Vibrating frequency (Hz) | Double amplitude | Motor type | Power (KW) | Weight (T) | Dimensions (L×W×H) (mm) |
| DYA2160 | 2100×6000 | 1 | 18o | ≤400 | 62-250 | 970 | 7-9 | Y200L1-6 | 18.5 | 5.4 | 6010×3300×2250 |
| 2DYA2160 | 2100×6000 | 2 | 18o | ≤400 | 62-250 | 970 | 7-9 | Y225M-6 | 30 | 8.25 | 6010×3370×3600 |
| 3DYA2160 | 2100×6000 | 3 | 18o | ≤400 | 62-250 | 970 | 7-9 | Y250M-6 | 37 | 9.8 | 6010×3450×4070 |
| 4DYA2160 | 2100×6000 | 4 | 18o | ≤400 | 62-250 | 970 | 7-9 | Y280S-6 | 45 | 11.35 | 6010×3520×4540 |
| DYA3072 | 3000×7200 | 1 | 20o | ≤400 | 110-375 | 730 | 8-12 | Y200L-8 | 2×15 | 6.7 | 7200×4790×3760 |
| 2DYA3072 | 3000×7200 | 2 | 20o | ≤400 | 110-375 | 730 | 8-12 | Y225M-8 | 2×22 | 12.7 | 7200×4860×4200 |
| 3DYA3072 | 3000×7200 | 3 | 20o | ≤400 | 110-375 | 730 | 8-12 | Y250M-8 | 2×30 | 15.5 | 7200×4940×4880 |
| 4DYA3072 | 3000×7200 | 4 | 20o | ≤400 | 110-375 | 730 | 8-12 | Y280S-8 | 2×37 | 18.3 | 7200×5010×5590 |
As a leading large circular vibrating screen manufacturer located in China, Jiangsu Pengsheng Heavy Industries Co., Ltd. constantly strives for providing a variety of feeding equipment, stone crushers, grinding machines, etc, to our global customers.
Due to reliable quality and affordable prices, our products are widely exported to Russia, Saudi Arabia, Indonesia, Libya, Angola, Gabon, Guinea, and other countries.
Please do contact Jiangsu Pengsheng Heavy Industries Co., Ltd., should you have any inquiries about any of our products. We are competent and are your one stop shopping centre for all your machinery needs.
Thank you very much for visiting our website!
