Zhejiang Sunny Machinery Technology Co., Ltd.
China Manufacturer with main products: Producing Extractor Concentrator, Alcohol Tower, Mixing Emulsifier, Mixing tank, Storage Tank and Pharamaceutical Machine |
Paper Cup Maker/Paper Machine
| Supply Ability: | 100 Set/Sets per Month |
|---|---|
| Shipping: | by sea |
| Payment Terms: | L/C, T/T |
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Zhejiang in China |
| Packaging Details: | wooden packing |
Specifications
Paper Cup Forming Machine /Paper Machine/Paper Cup Maker

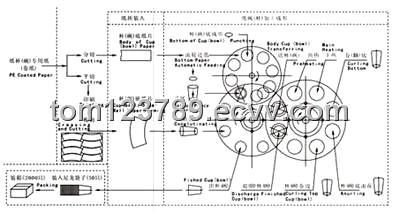

The paper cup forming machine is an automatic equipment with multi-stations, cam and chain transmission. This paper cup forming machine can finish the whole operations including paper feeding, oil casting, bottom punching, heating, knurling, edge curling and cups removing.

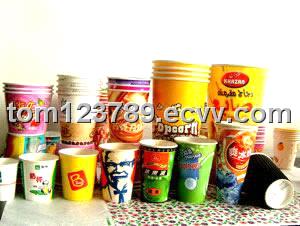

This paper cup forming machine is an ideal machine for manufacturing teacup, advertisement cup, ice cream cup, coffee cup, etc.
Note:
If you want to manufacture the single PE coated paper cups, please use the DB-C16 ,DB-C18 ,DB-C22 paper cup forming machines, if make the double PE coated paper cups, we recommend the DB-2C16, DB-2C18,DB-2C22 paper cup forming machines.
Main Parameters of DB-C16 Paper Cup Forming Machine:
| Type | DB-C16 | DB-2C16 | DB-C18 | DB-2C18 | DB-C22 | DB-2C22 |
| Capacity | 45-55pcs/ min | 40-50pcs/ min | 30-40pcs/ min | |||
| Required paper thickness | 150-250gsm one-side PE coated paper | 150-380gsm two-side PE coated paper | 150-250gsm one-side PE coated paper | 150-380gsm two-side PE coated paper | 150-250gsm one-side PE coated paper | 150-380gsm two-side PE coated paper |
| Paper cup specification | (A)ф50-90mm,(B) 45-100mm, (C)ф35-75mm,(D) 4.5-10mm. | (Aф)60-128mm,(B) 45-140mm, (C)ф50-97mm,(D) 4.5-10mm. | (A)ф60-128mm,(B) 45-180mm, (C)ф50-97mm,(D) 4.5-10mm. | |||
| Required air supply | Working Pressure: 0.4-0.6Mpa Working Gas: 0.5m3 /minute | |||||
| Total power | 220V 50Hz 3.8kW or 380 V 50 Hz 3.8kW (variable-frequency control) | |||||
| Weight | 1300kg | 1550kg | 1600kg | |||
| Dimension (L×W×H) | 2450×1200×1750mm | 2450×1200×1800mm | 2700×1300×2000mm | |||
