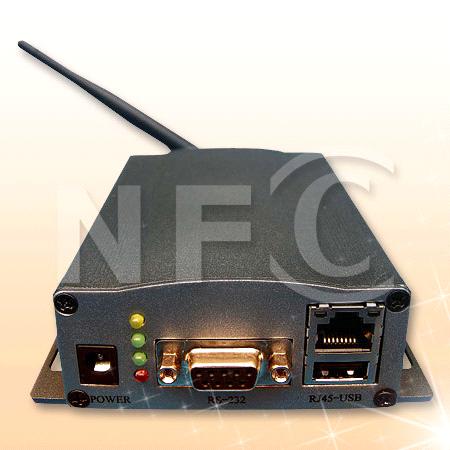

Wsn Access Point (AP) (NFC-4301)

Shipping:	by express or air

Inquiry Now Start Safebuy Order

ECVV Safebuy Services

According to the requirements of buyers, ECVV.com will purchase the cost-effective Chinese products for you from the well-chosen suppliers database which was accumulated in the past 10 years.Learn More>>
Safebuy Service Guarantee

Provide financial security for multinational purchaser; Determine delivery time and acceptance product according to the purchasing requirements; Arrange Chinese export declarations and international logistics; Provide unified delivery of products from different suppliers.

Product Details

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin:	Shenzhen in China

Specifications

NFC-4301 is access point (WSN product), which is mainly used to ED data processing. Ithas excellent penetrating performance and support multiple protocol (zigbee). NFC-4301 has been perfectly used in intelligent power system, firefighting asset, network server tracking management, building automatic management etc.

Please free to visit our website for more new featured products.

Technical specifications
Operating frequency	315/433/868/915MHz
Antenna port	One antenna port SMA
RF Power range	-30.0dBm~10.0dBm
Receiving sensitivity	-112dBm(<1.2kbps)
Communication range	0~1000m (adjustable)
Operating mode	FHSS or fixed frequency(set by software)
Communication interface	RS-232, RS-485, USB, Wiegand26/34/42/50, Ethernet
Input/Output	1 triggering input, 1 relay output
Optional function	2 relays, CAN, RSSI, ID match function, Offline function and Time function
Network protocol	NFC Vicbee, Zigbee
Synchronization	Network time synchronization, so as to reduce the total power consumption
Self-organizing time	Less than 1 minute (depends on the setup of user)
Node Mode	Support 4096 nodes
Network feature	Self-organizing network, self-recover network problem, optimize network route
Power supply	AC input: 100~240V, 50/60Hz 1.2A DC output: 5V/1A
Product size	134mm99mm34mm
Packing size	284mm275mm85mm
Gross weight	0.79kg
Net weight	0.25kg
Working temperature	-20℃~+70℃ (-4℉~+158℉)
Storage temperature	-40℃~+85℃ (-40℉~+185℉)
Accessories	Standard matched antenna, Power adapter, Power cable, RS-232 cable, USB cable, Ethernet cable
Working status indication	Buzzer, LED indicator
