Pipe Making Machine

Inquiry Now

Related products from verified members

Spiral square paper tube machine /rectangle pap...

Price:10,000.00-20,000.00 USD/Set

Min. Order:

Product Details

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe

Specifications

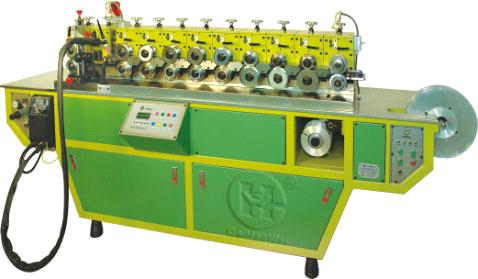

The function of Universal Pipe Making Machine(GTDZGJ-B) is to stay gold , platinum gold, silver and copper into pipe lines for one time, and it is allocated with many kinds of dies which are easy to wash. The maximum diameter of the pipe is from Ø6mm to Ø12mm which can be made 0.25mm-0.5mm thick just by one time, and the made pipe is smooth with fluent gap without any defect of crack and overlaying etc..

Weight: 287Kg

Max./min. dia of wire: Ø12mm/ Ø6mm

Working relative speed: 0.5-10m/ min

Power: AC380V ± 10%

Frequency: 50HZ(± 5％)

Frequency of the main engine: 1.5kW

Ambient temperature: -3℃to 40℃

Ambient relative humidity: ≤80%

Noise: ≤40 decibel
