Ultrasonic Sensor

Inquiry Now Start Safebuy Order

ECVV Safebuy Services

According to the requirements of buyers, ECVV.com will purchase the cost-effective Chinese products for you from the well-chosen suppliers database which was accumulated in the past 10 years.Learn More>>
Safebuy Service Guarantee

Provide financial security for multinational purchaser; Determine delivery time and acceptance product according to the purchasing requirements; Arrange Chinese export declarations and international logistics; Provide unified delivery of products from different suppliers.

Product Details

Specifications

Product Details:

Type	Parking Lift
Principle:	Ultrasonic
Work temperature:	-20---+80℃
Current rating:	13mA+17mA(LED indicator)
Voltage rating:	DC 24V
Detecting arrange:	0.1---.5m
Max error:	0.1m
Detecting area (3.5m):	0.4sq.m
Communication:	RS-485
baud velocity:	4800bps, N,8,1
Available distance:	≤1000m

Payment & Shipping Terms:

Price:	Get Latest Price
Minimum Order Quantity:	Negotiable Trial Order
Minimum Order Quantity:	1 Piece/PiecesTrial Order
Port:	Xiamen
Packaging Details:	Carton Size:582546cm,100pcs/carton
Delivery Time:	within one month after the receipt of customers' payment
Payment Terms:	T/T
Supply Ability:	100000 Piece/Pieces per Month

Detailed Product Description

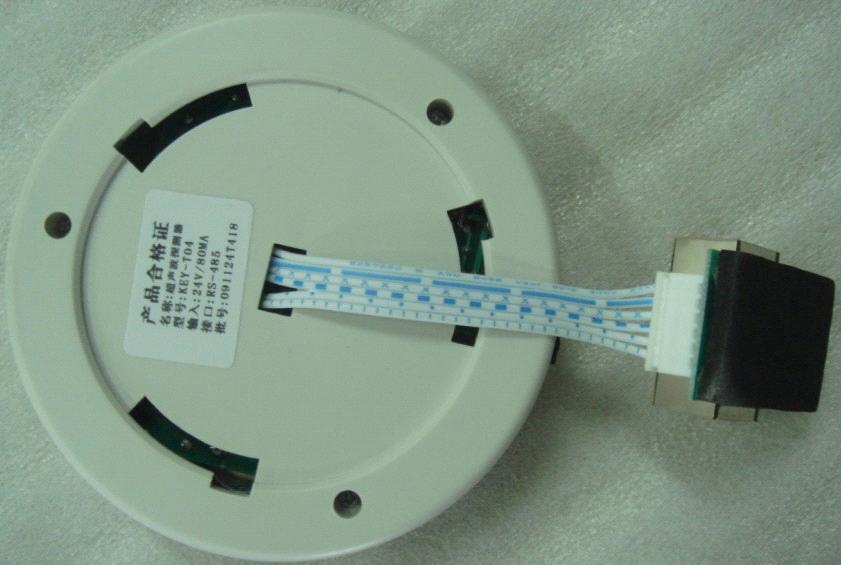

The ultrasonic sensor with RJ45 adapter plate which is available to connect with network cable directly.

1).Main Functions of Ultrasonic Detector
. UD(ultrasonic detector) as one of the main part of parking guidance system makes use of ultrasonic detecting the parking space to get message and transfer to ZCU or other equipments by RS485.
. One parking space needs one UD which is installed in the middle of the car park space.

2).How Parking Guidance System Works:
Firstly, UD takes use of ultrasonic wave to detect the car space to see if it is occupied by vehicles and transfer relative command to LED Indicator which will turn from green to RED when occupied, or it will keep GREEN; meanwhile, the UD transmit its status message to ZCU immediately, and ZCU will collect and forward the information to CCU; CCU processes these data and sends the relevant command to ZCU and LED panel.

3).Cases:

.......

18 May,2008     1000 cars         Beijing                       SOLANA Lifestyle shopping park
19 July,2008        3850 cars       Singapore                  Changi Airport(OEM)
20 August,2008    200 cars       Japan                           Shin-Tokyo Building(TOKYO Marunouchi)
21 August,2008    70 cars         Beijing                         hongqiao pearl-market
22 Sep,2008        3160 cars     Philippines                    Mall of Asia (Manila SM)
23 Oct,2008         1500 cars       Singapore                      Harbourfront Centre(OEM)
24 Nov,2008           320 cars      Thailand                          Kasikorn Bank

26. April,2009 105 bays Spain OviedoBus station

29.June,2009 650 bays France Alizes

31. July,2009 1700 bays Philippines SM megamall

32. Aug, 2009 1160 bays Poland Krakow airport

33. Aug, 2009 170 bays Slovakia CASSOVAR

34. Aug, 2009 158 bays Iran Shiraz shopping mall

35. Sep,2009 50 bays Norway subsea7 office building

......
