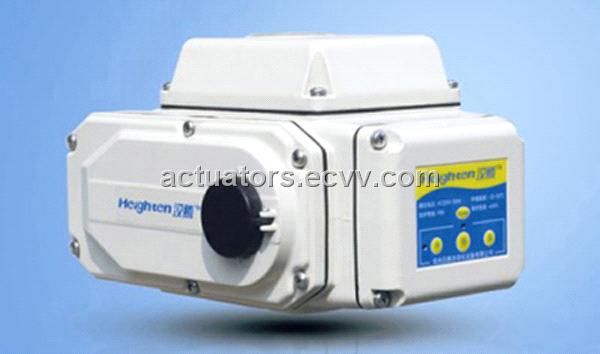

HT-Z Series Overall Switching Electric Actuator
-
ECVV Safebuy Services
According to the requirements of buyers, ECVV.com will purchase the cost-effective Chinese products for you from the well-chosen suppliers database which was accumulated in the past 10 years.Learn More>>
-
Safebuy Service Guarantee
Provide financial security for multinational purchaser; Determine delivery time and acceptance product according to the purchasing requirements; Arrange Chinese export declarations and international logistics; Provide unified delivery of products from different suppliers.
Related products from verified members
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Jiangsu in China |
| Packaging Details: | box |
Specifications
The traditional electric actuator is the motor driving part with a simple combination of
gear parts. To use such actuator, need to add external control box. It’s trouble and more
costs.
gear parts. To use such actuator, need to add external control box. It’s trouble and more
costs.
Overall switching electric actuator added internal control unit on the basis of the
traditional electric actuator. The actuator can control the motor on the start and stop and
reversing without local control box, feedback is provided, only need to provide external
control signal.
traditional electric actuator. The actuator can control the motor on the start and stop and
reversing without local control box, feedback is provided, only need to provide external
control signal.
The overall switch structure is compact electric actuator, convenient operation, simple
control, saving automation systems to control costs, is a traditional replacement.
control, saving automation systems to control costs, is a traditional replacement.
Compared with the traditional actuator, overall switching electric actuator can save
the local control box.
the local control box.
|
Specification
Power Supply
Model
|
HT-10Z
|
|||||
|
|
DC24V
|
AC24V
|
AC110V
|
AC220V
|
AC380V
|
|
|
Power
|
26W
|
26W
|
26W
|
26W
|
16W
|
|
|
Rated Current
|
2.53A
|
2.62A
|
1.07A
|
0.80A
|
0.60A
|
|
|
Output Torque
|
100Nm
|
|
50/100Nm
|
100Nm
|
||
|
90° Operational Time
|
30S
|
|
15S/30S
|
30S
|
||
|
Operational Angle Range
|
Adjustable from 0 to 360°
|
|||||
|
Adapter Control Circuit
|
Z Series
|
|||||
|
Weight All
|
3.0kg
|
|||||
|
Insulation Resistance
|
DC24V/AC24V:100M?/250VDC AC110V/AC220V/AC380V:100M?/500VDC
|
|||||
|
Withstand Voltage
|
DC24V/AC24V:500VAC per minute, AC110V/AC220V:1500VAC per minute, AC380V:1800VAC per minute
|
|||||
|
Enclosure Rating
|
IP65
|
|||||
|
Mounting Direction
|
360° installed at any angle
|
|||||
|
Electric Conduit
|
M20 waterproof cable connector
|
|||||
|
Ambient Temperature
|
-30℃ ～ +60℃
|
|||||
|
Various Option
|
Fast turn-off, over torque protection, dehumidification heaters
|
|||||
